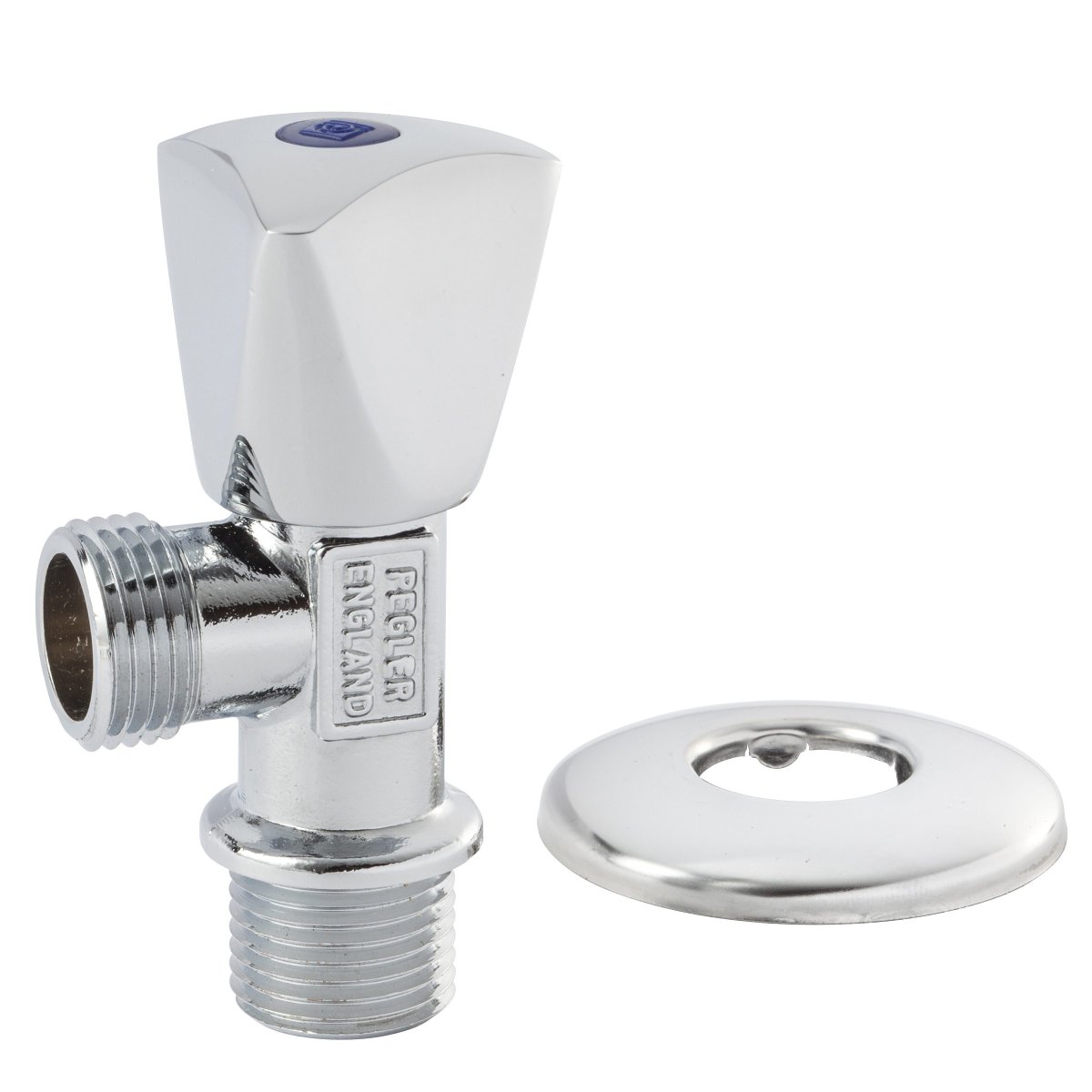

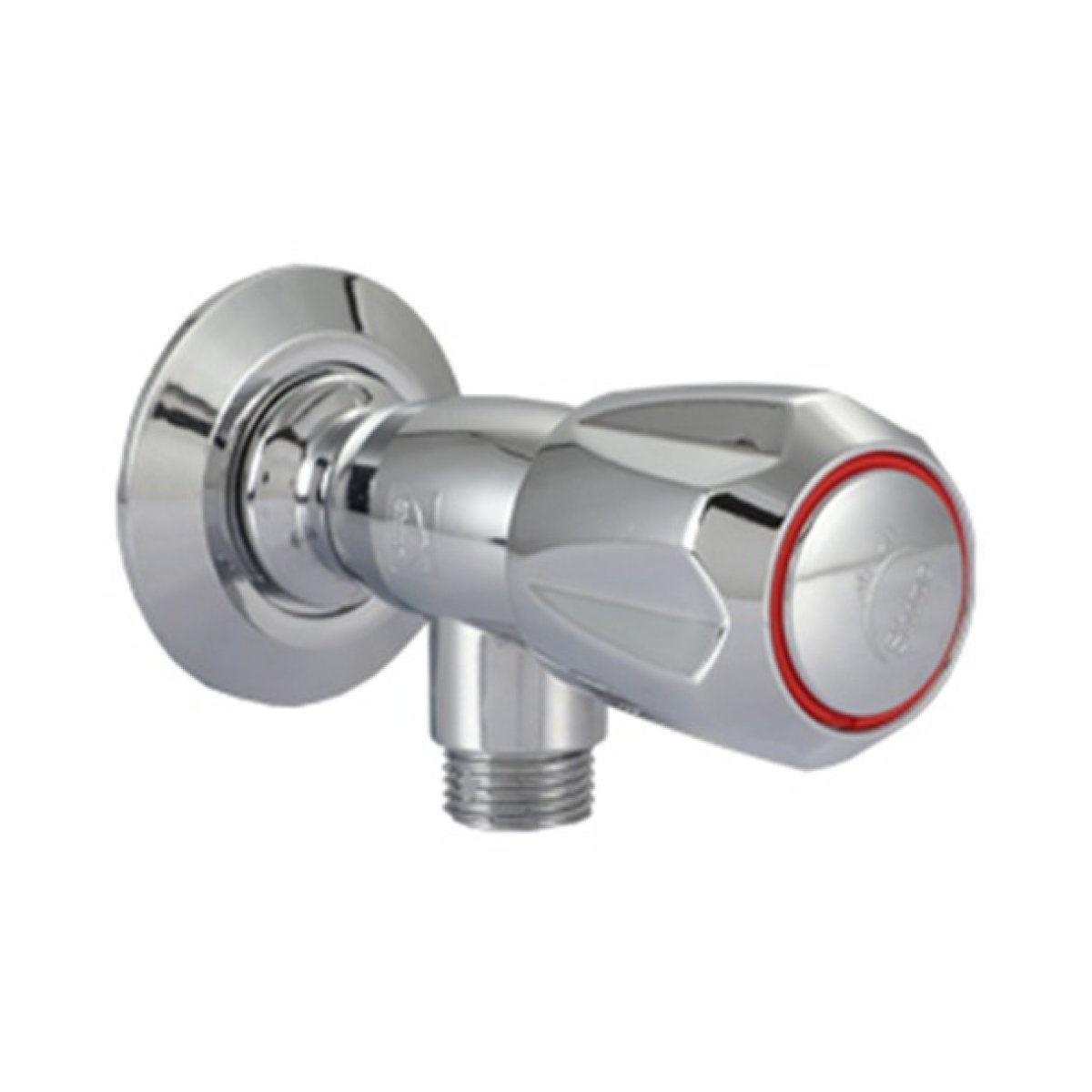

Brass Basin Angle Valve A high-reliability, deck or wall-mounted fluid isolation valve engineered to control localized water supply feeds to bathroom basins, kitchen sinks, and commercial wash stations. Machined from solid, lead-free brass alloy and outfitted with a rapid, quarter-turn maintenance-free ceramic disc mechanism, this valve serves as the critical safety shutdown junction between the main high-pressure building riser infrastructure and individual flexible endpoint supply lines.
Critical Fluid Isolation and High-Pressure Control at the Endpoint Node
In massive multi-story facilities, commercial high-rises, and institutional buildings, the main plumbing infrastructure maintains high static pressures to move water efficiently across floor plates. Connecting an endpoint fixture—such as a luxury basin mixer or an electronic sensor faucet—directly to these main lines without localized control introduces a severe operational vulnerability. If an internal faucet cartridge fails or a waterline ruptures, the entire riser stack or floor network would have to be drained to execute a simple repair. A Basin Angle Valve resolves this engineering bottleneck by providing an immediate, dedicated mechanical shutdown switch underneath every single plumbing station.
The internal architecture of a modern high-spec angle valve features a streamlined 90-degree internal fluid pathway. Water enters horizontally from the wall line and exits vertically up toward the basin fixture.
Unlike old-style multi-turn compression valves that use rubber washers—which quickly rot, crack, and freeze in place due to hard water calcification—modern enterprise valves leverage a quarter-turn ceramic ball or disc system. Two highly polished, micro-flat ceramic surfaces rotate smoothly past one another. Turning the exterior handle exactly $90^\circ$ cuts off the high-pressure water column instantly, providing a reliable drop-tight seal even after years of static dormancy.
Key Performance Features
Solid Lead-Free Forged Brass Body: Machined from a single block of premium heavy-duty copper-brass alloy, delivering an ultra-dense casing completely immune to stress-corrosion cracking, pinhole leaks, and dezincification.
Rapid Quarter-Turn Ceramic Disc Mechanics: Features an ergonomic, low-friction control mechanism that requires no routine lubrication and closes cleanly without snapping, binding, or grinding against hard water mineral deposits.
Dual-Seal O-Ring Blowout Prevention: Outfitted with high-temp EPDM/Viton dual internal O-rings and a blowout-proof stem assembly designed to absorb heavy system hydraulic shocks (water hammer) without leaking.
Premium High-Micro Mirror Finishes: Protective exterior coatings (such as Mirror Chrome, Brushed Nickel, or Matte Black) are bonded using industrial electroplating or Physical Vapor Deposition (PVD), resisting structural pitting and harsh chemical cleaning corrosion.
Clean, Integrated Wall Escutcheon Plate: Shipped with a matching slide-on stainless steel flange plate to cleanly mask structural drywall drill points and rough-in pipe pipe junctions inside the cabinet space.
Ideal Infrastructure Applications
Commercial Multi-Unit Office Riser Blocks: Providing fast, localized station isolation for routine faucet cartridge swaps without shutting down plumbing lines for adjacent offices.
High-Density Hospitality and Hotel Suites: Restricting maintenance access footprints to individual guestrooms, maintaining high facility uptime during repairs.
Industrial and Healthcare Sanitation Lounges: Deploying clean, corrosion-resistant valves capable of handling continuous chemical sanitization wiping routines.
Technical Performance MatrixEngineering Metric ParameterHigh-Spec ¼-Turn Ceramic ValveStandard Multi-Turn Utility ValvePrimary Structural CoreSolid Lead-Free Forged Brass AlloyLow-Grade Cast Brass / Zinc Die-Cast ShellInternal Valve MechanismDual Polished Ceramic Disc / Ball CoreMulti-Turn Compression Rubber Washer / StemInlet Port Interface Spec½-Inch NPT or Compression Female/Male½-Inch NPT Standard FemaleOutlet Port Interface Spec⅜-Inch OD Compression Male Thread½-Inch or ⅜-Inch Compression OutletsMax Working Pressure RatingUp to 150 PSI ($10.3\text{ bar}$) ContinuousUp to 100 PSI Max Working PressureSupported Temperature Range$4^\circ\text{C}$ to $82^\circ\text{C}$ ($40^\circ\text{F}$ to $180^\circ\text{F}$)$4^\circ\text{C}$ to $60^\circ\text{C}$ Standard UtilitiesHandle Actuation MotionSingle $90^\circ$ Quarter-Turn Stop HandleMulti-Revolution Full Turn Circular WheelInternal O-Ring Seal CompoundHigh-Grade EPDM / Viton ElastomersStandard Industrial Synthetic RubberCompliance CertificationsASME A112.18.1 / NSF 61 & 372 / cUPCcUPC Compliant / Basic National Plumbing SpecsStandard Procurement Package Components
Solid Brass Quarter-Turn Basin Angle Valve Body Assembly
Heavy-Duty Ergo-Grip Metal Turning Control Handle
Matching Stainless Steel Mirror-Finish Wall Flange Cover Escutcheon Plate
Removable Internal Brass Compression Nut and Copper Sleeve Ferrule Ring ($3/8\text{-Inch}$)
Factory Hydrostatic Pressure-Testing Validation Certificate
Required System Add-ons: Thread Sealant PTFE Tape, Stainless Steel Braided Flexible Water Supply Connectors ($3/8\text{-Inch}$ Compression to $1/2\text{-Inch}$ FIP), and Threaded Wall Adapter Nipples (Sold Separately based on project site localized pipeline layouts)
