Bottle Trap / P-Trap

The Mechanical Science of Sewer Gas Isolation

Every open drainage port inside a commercial or residential layout represents a direct physical line into the building's main sewer network. Without a reliable mechanical barrier, methane, hydrogen sulfide, carbon monoxide, and airborne pathogens would flow freely up through the drain flange, making spaces uninhabitable and violating health codes. An Enterprise-Grade Waste Trap System handles this job by using gravity and liquid dynamics to create a permanent, self-replenishing fluid seal right below the fixture's discharge throat.

The system operates via a continuous balance of atmospheric pressures. As wastewater drops from the sink coupling, it pushes into the trap’s curved or chambered body. When the faucet turns off, gravity catches the last volume of water, trapping a static column of fluid inside the basin bend.

This trapped water acts as an airtight plug. It completely seals off the open room air from the toxic gases inside the downward waste line, while allowing subsequent graywater to slide through cleanly.

Strategic Structural Topologies

Drainage traps are specified into two distinct geometric styles based on the plumbing rough-in layout and whether the under-sink space is exposed to public view:

1. P-Trap Configuration (Performance & Code Focus)

• The Self-Scouring Curve: Formed in a uniform, sweeping dynamic "P" shape curve that uses a smooth $180^\circ$ bend followed by a horizontal $90^\circ$ wall run.

• Best For: Kitchen sinks, commercial food prep zones, and high-volume utility bays. The sweeping interior lines create a smooth fluid path that prevents hair, grease, and heavy organic food debris from snagging or settling in the pipe.

2. Bottle Trap Configuration (Exposed Aesthetics & Spatial Focus)

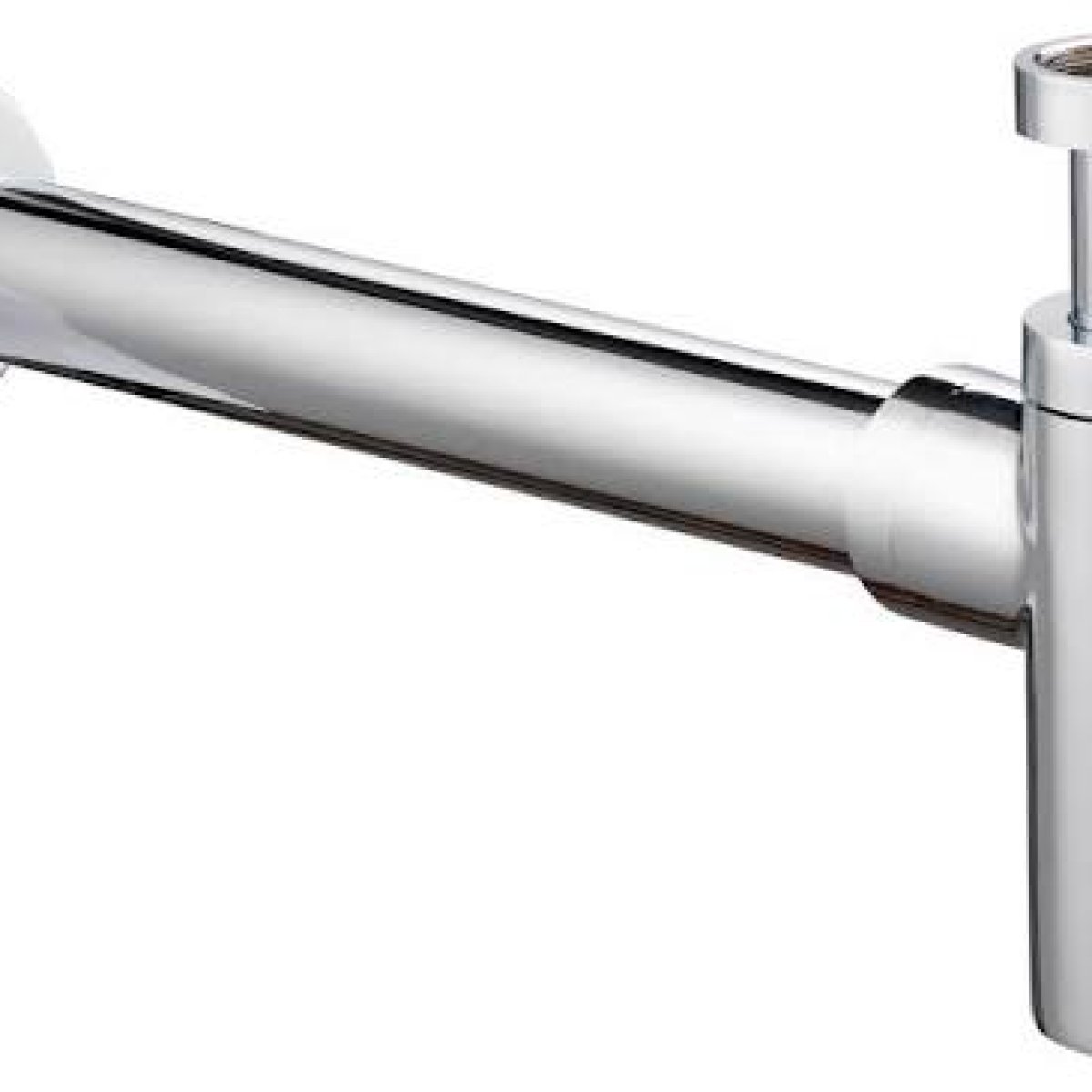

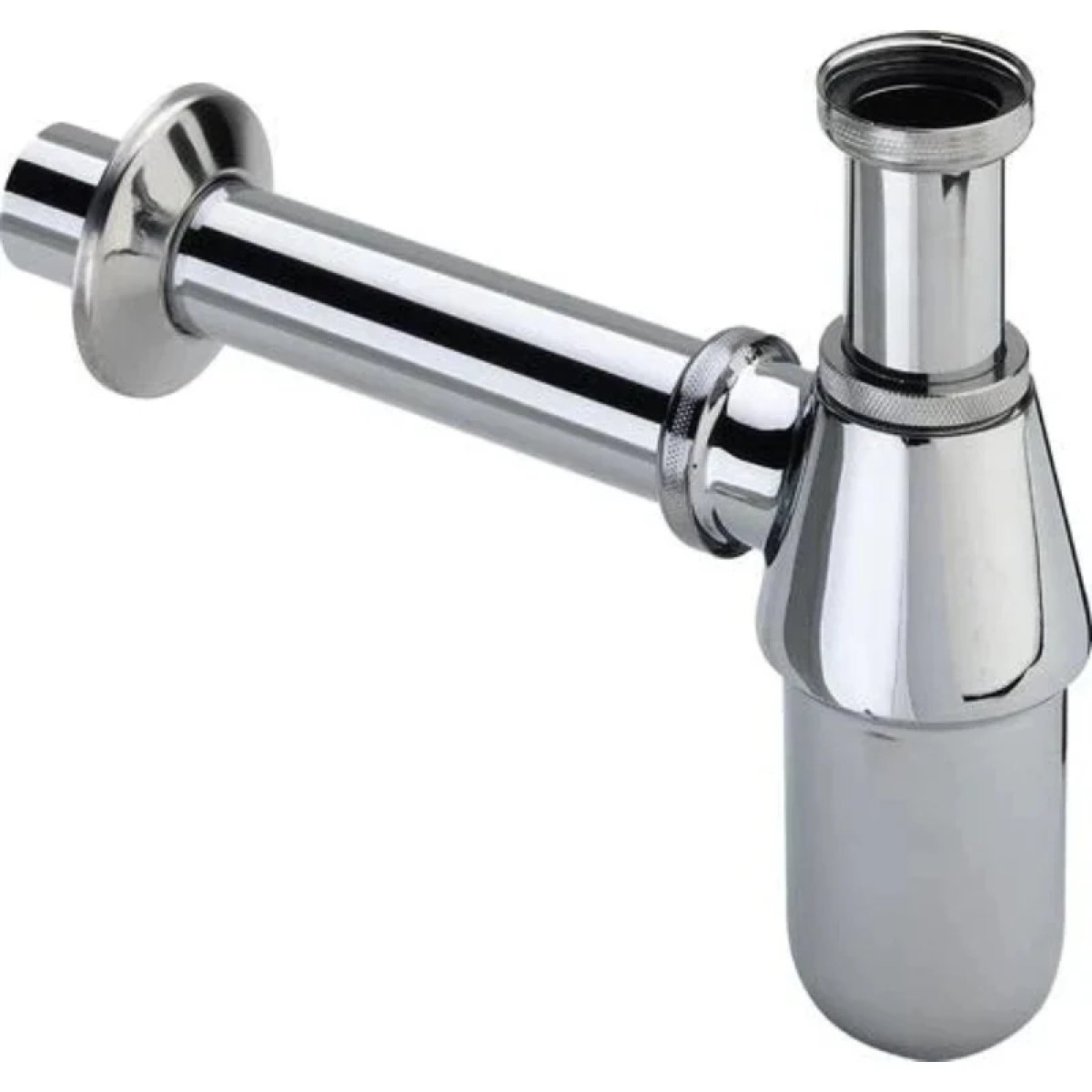

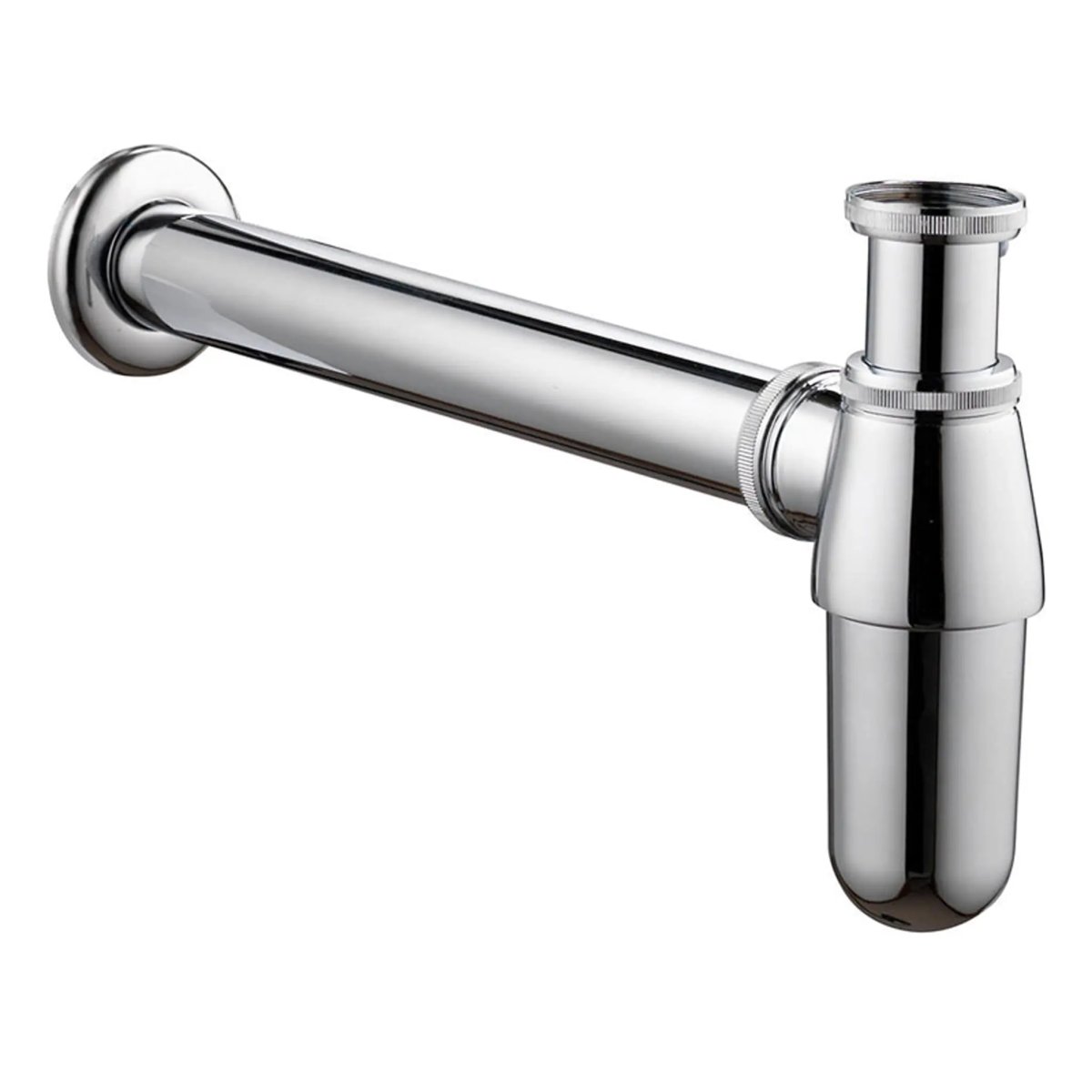

• The Compact Sump Cylinder: Features a sleek, vertical cylindrical drop-chamber. Water pours straight down an inner tube into the cylinder base, then spills over an internal partition wall to exit horizontally out the rear line.

• Best For: Modern floating bathroom vanities, hospitality suites, and public handwashing stations with exposed under-sink plumbing. The compact frame takes up minimal horizontal space, and the bottom base cap unscrews instantly by hand to catch dropped jewelry or clean out sediment without dismantling the entire pipe run.

Key Performance Features

• Heavy-Gauge Forged Brass Shells: Premium variants are machined from solid, thick-walled copper-brass alloy blocks. This creates a dense, rigid structural pipe completely immune to thermal cracking from boiling water or corrosion from chemical drain cleaners.

• Gas-Tight EPDM Compression Rings: Outfitted with high-density Ethylene Propylene Diene Monomer (EPDM) synthetic rubber slip-joint washers. These resist drying out, hardening, or cracking under fluctuating water temperatures, maintaining an airtight seal.

• Removable Bottom Clean-Out Sump Base: Equipped with an integrated, o-ring sealed lower drain cap. This lets maintenance personnel flush out hair clumps or retrieve dropped items like rings in seconds, without needing to pull apart the primary drain pipes.

• Mirror-Plated Architectural Surfaces: Exterior surfaces are finished using heavy-layer electroplating or Physical Vapor Deposition (PVD) technology, creating an easy-to-clean outer shell that won't pit, flake, or tarnish when wiped down with harsh facility sanitizers.

• Universal Slip-Joint Tuning Adjustment: The vertical inlet expansion neck slides up or down into the sink waste coupling tailpiece ($1.25\text{-inch}$ or $1.5\text{-inch}$ diameters), allowing effortless height adjustments during installation.

Technical Performance MatrixEngineering Metric ParameterArchitectural Chrome-Brass P-TrapPremium Cylindrical Bottle TrapPrimary Structural CoreHeavy-Gauge Forged Brass AlloyForged Solid Brass / Structural PolymerPhysical Geometry ProfileTraditional Sweeping Loop ($180^\circ \times 90^\circ$)Compact Vertical Cylindrical Sump ChamberInlet Extension Connection Range1½-Inch ($38\text{mm}$) or 1¼-Inch Slip-Joint1¼-Inch ($32\text{mm}$) Architectural MetricHorizontal Discharge LengthExtended $12\text{-Inch}$ Wall Tube with FlangeAdjustable $8\text{ to }12\text{-Inch}$ Rear Exit PipeContinuous Trap Fluid Seal DepthStandard 2.0-Inch ($50\text{mm}$) Fluid ColumnCalibrated 2.0-Inch Liquid Barrier ColumnClean-Out Access SystemBottom Hex-Nut Solid Drainage Brass PlugTool-Free Threaded Removable Sump CupSealing Washer CompoundHigh-Elasticity Leak-Proof EPDM WashersHigh-Elasticity EPDM O-Ring ProfilesCabling Performance StandardASME A112.18.2 / CSA B125.2 / cUPCASME A112.18.2 / CSA B125.2 / cUPC ListedStandard Procurement Package Components

• Solid Brass or High-Impact Structural Polymer Waste Trap Main Body

• Vertical Telescopic Inlet Pipe Extension Tube

• Horizontal Wall-Outflow Discharge Drainage Pipe

• Matching Mirror-Finish Deep Wall Box Escutcheon Flange Plate

• High-Elasticity EPDM Friction Slip-Joint Washers and Ribbed Brass Interlocking Nuts

• Required System Add-ons: Thread Sealant PTFE Paste, Threaded Wall-Adapter PVC/Brass Bushings, and Under-Sink Removable Basket Strainer Waste Couplings (Sold Separately based on project site plumbing schematic drawings)
