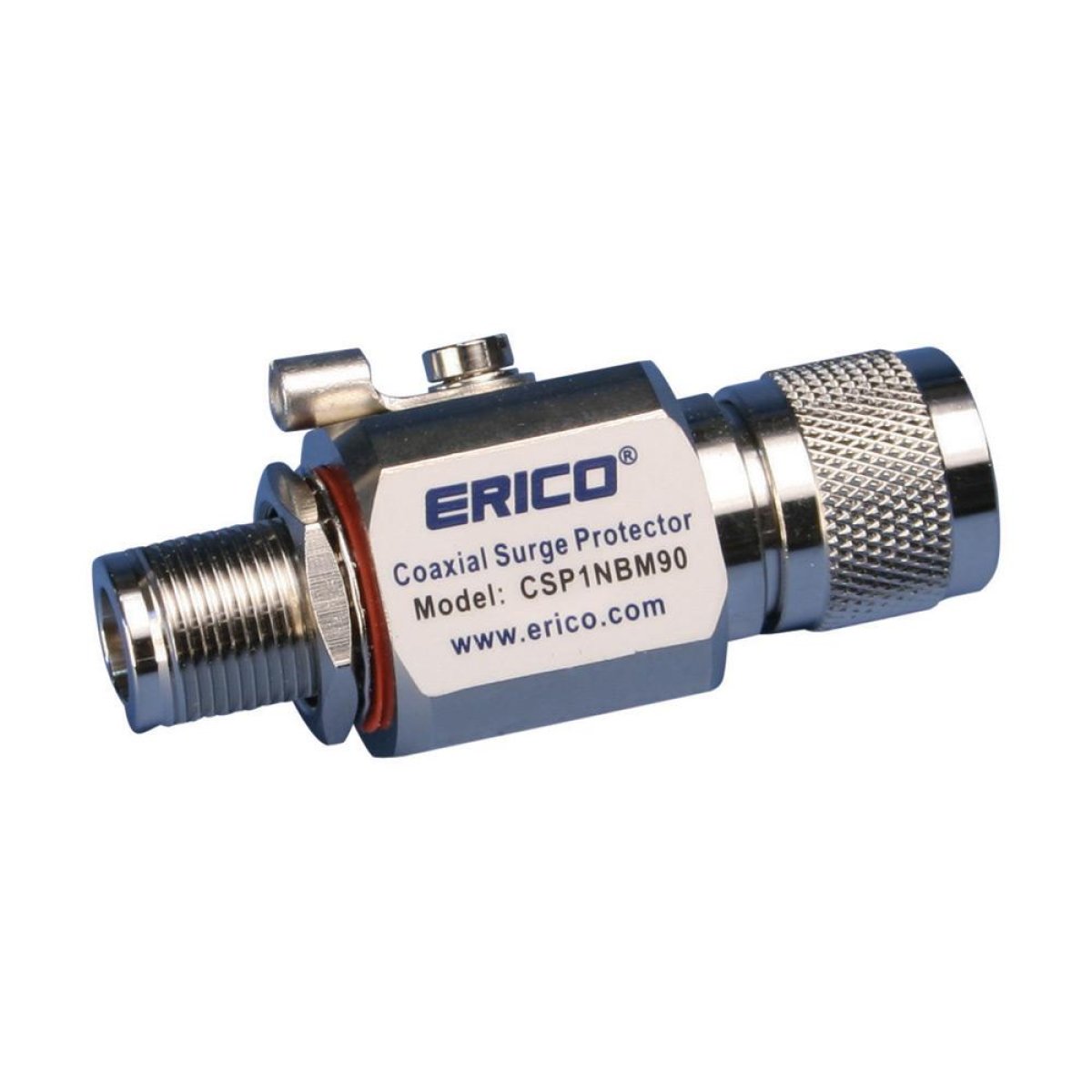

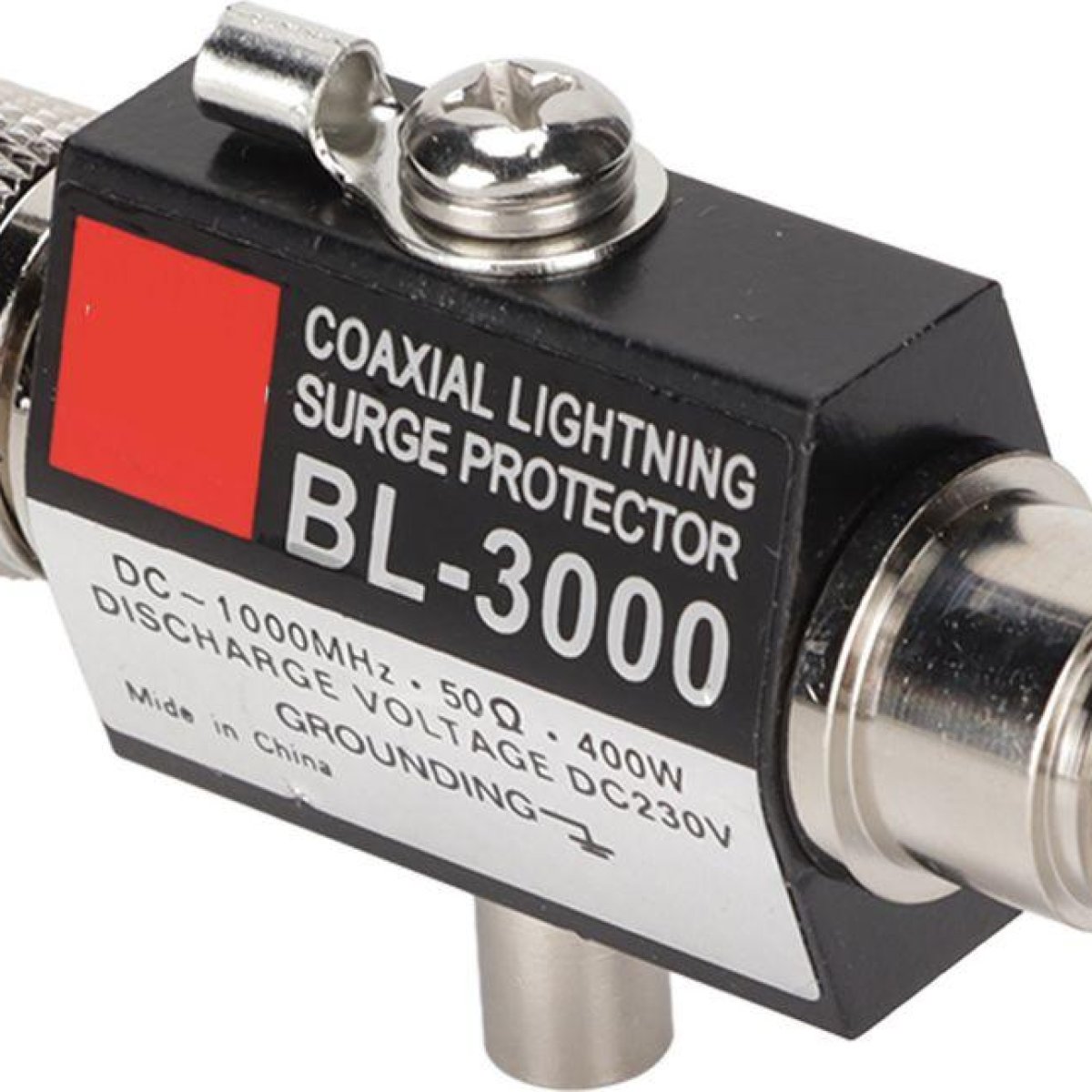

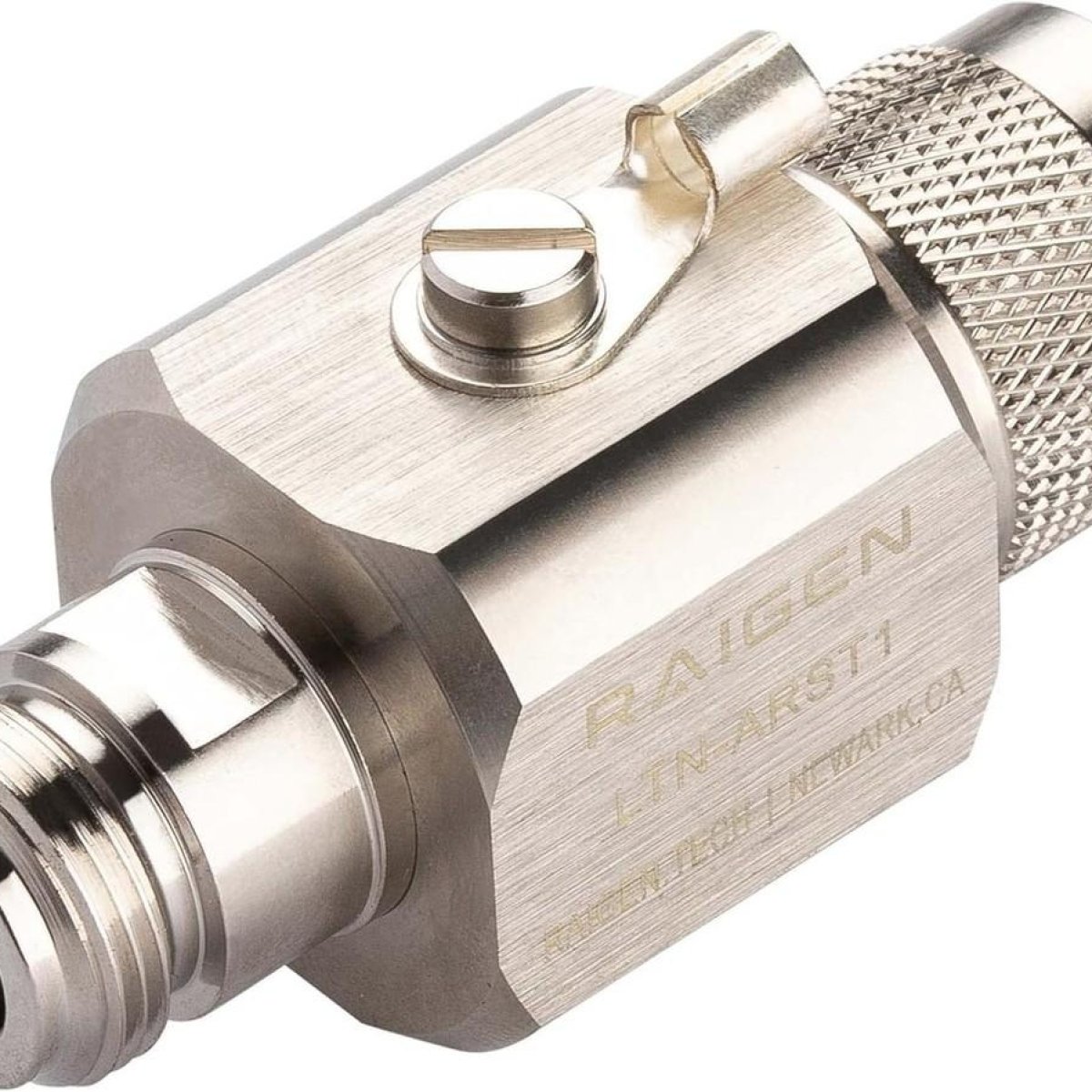

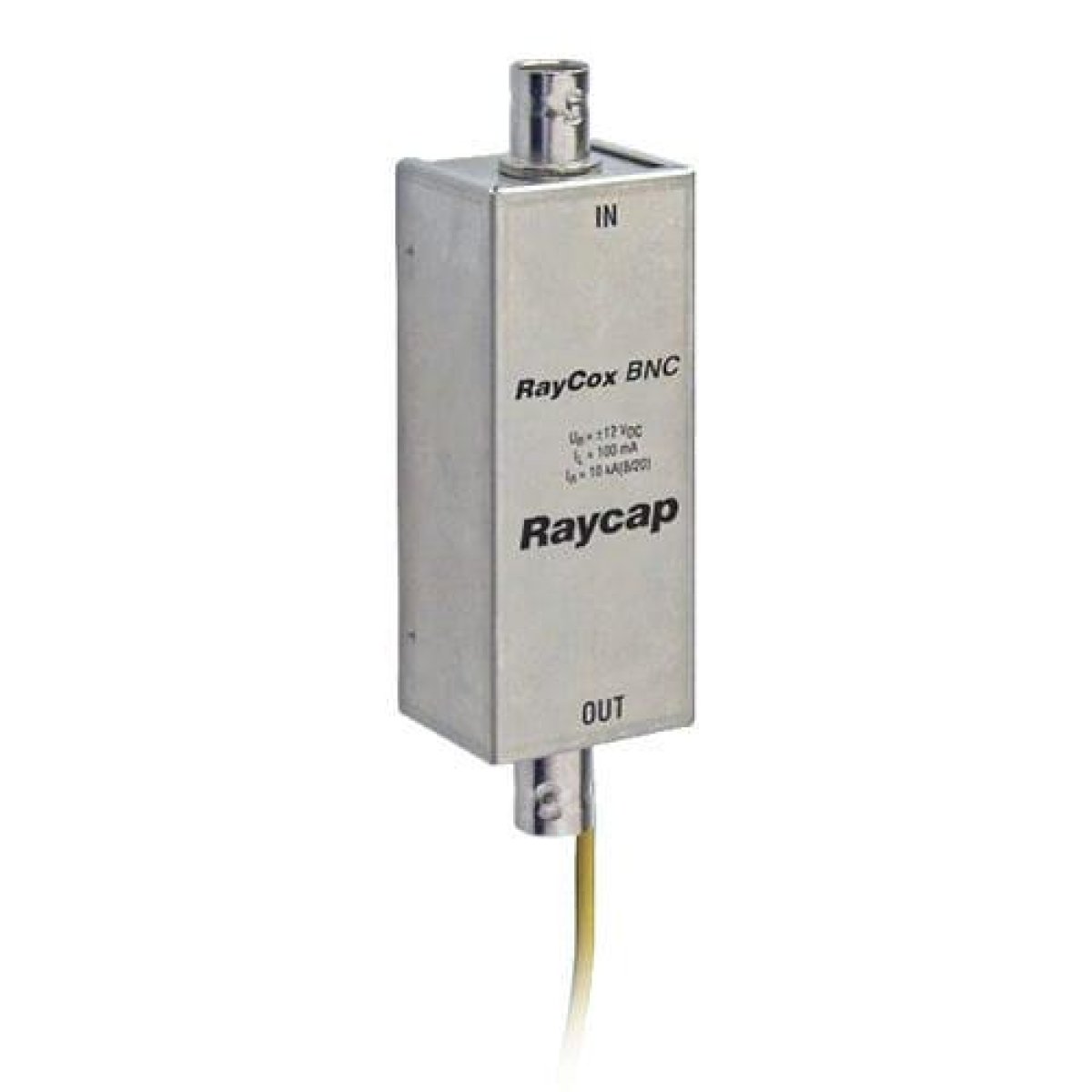

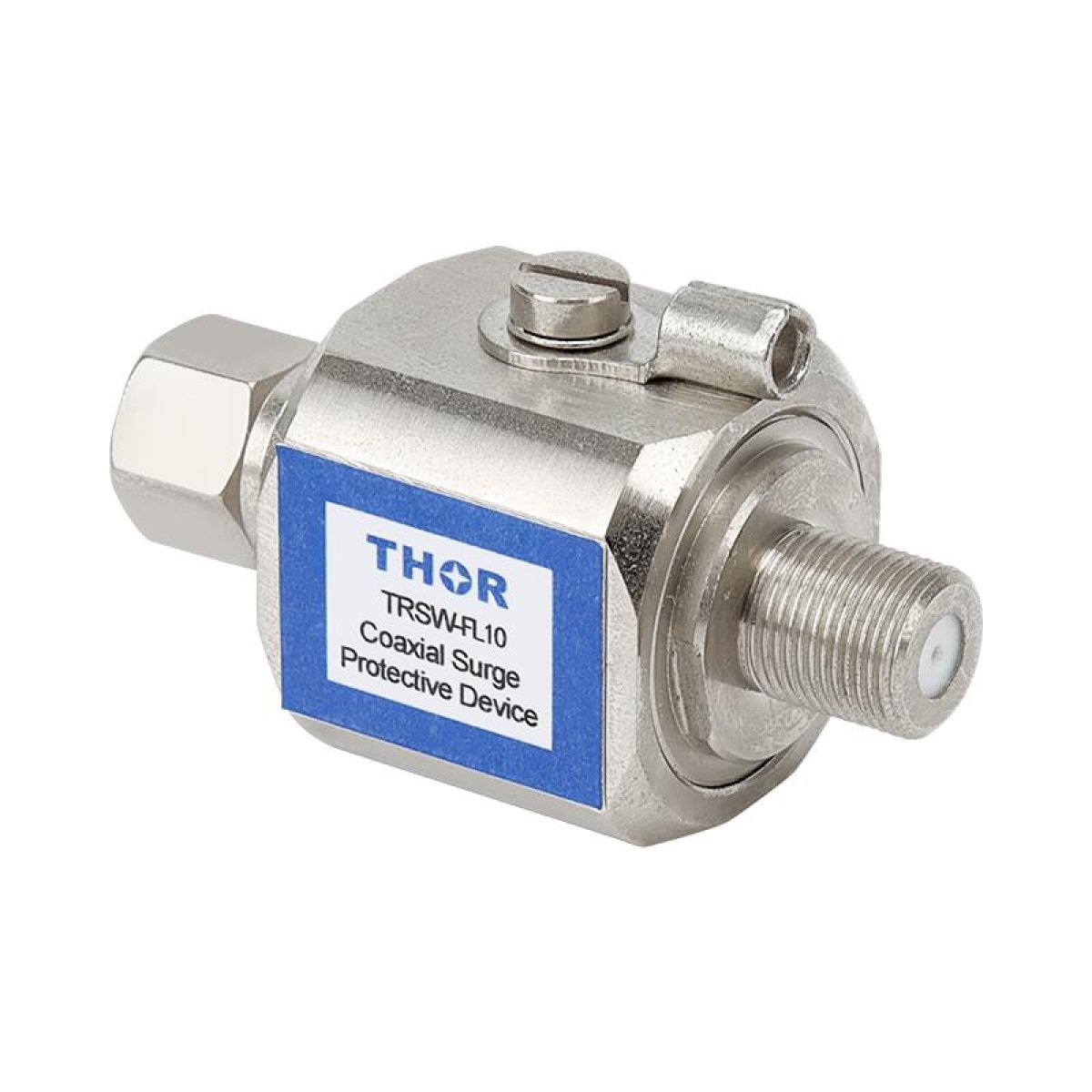

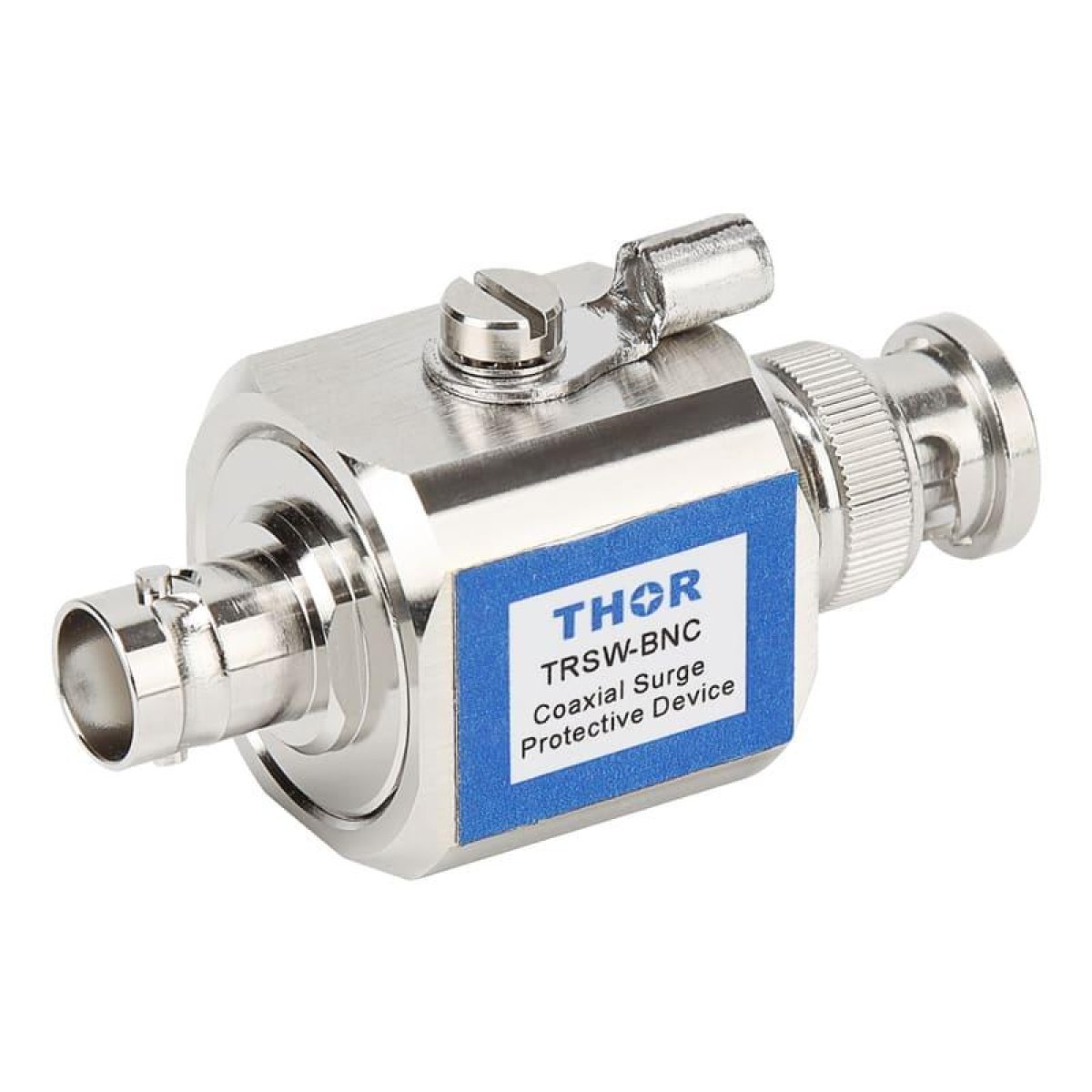

Coaxial Surge Protection Device

A Coaxial SPD is installed inline with coaxial cables to divert transient surge currents safely to ground without significantly affecting radio frequency (RF) performance. It is commonly used in antenna systems, television distribution, cellular communications, satellite installations, and CCTV systems.

Available with various connector types, these devices are selected based on frequency range, impedance, and connector compatibility.

Key Features

• Protects RF equipment from surge damage
• Low signal attenuation
• Wide frequency range
• High surge current capability
• Weather-resistant models available
• Easy inline installation
• Low VSWR
• Reliable grounding connection

Common Applications

• CCTV Systems
• Television Antennas
• Satellite Communication
• Cellular Base Stations
• Radio Communication
• GPS Systems
• Wireless Networks
• Telecommunication Towers

Common Connector Types

• N-Type
• BNC
• TNC
• SMA
• F-Type
• UHF (PL-259/SO-239)

Typical Specifications

• Impedance: 50 Ω or 75 Ω
• Frequency Range: DC to several GHz (model dependent)
• Connection: Inline Coaxial
• Standards: IEC 61643-21
