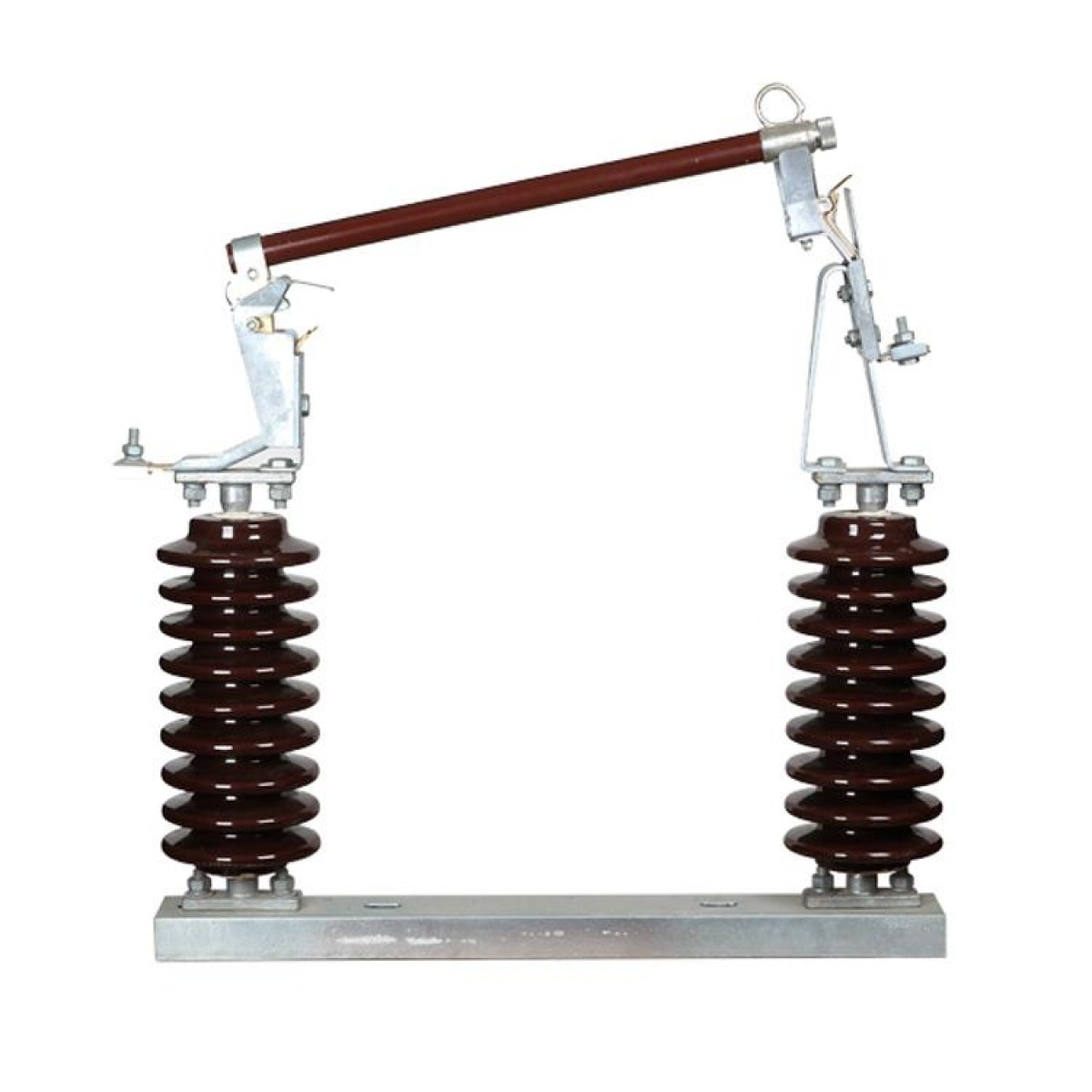

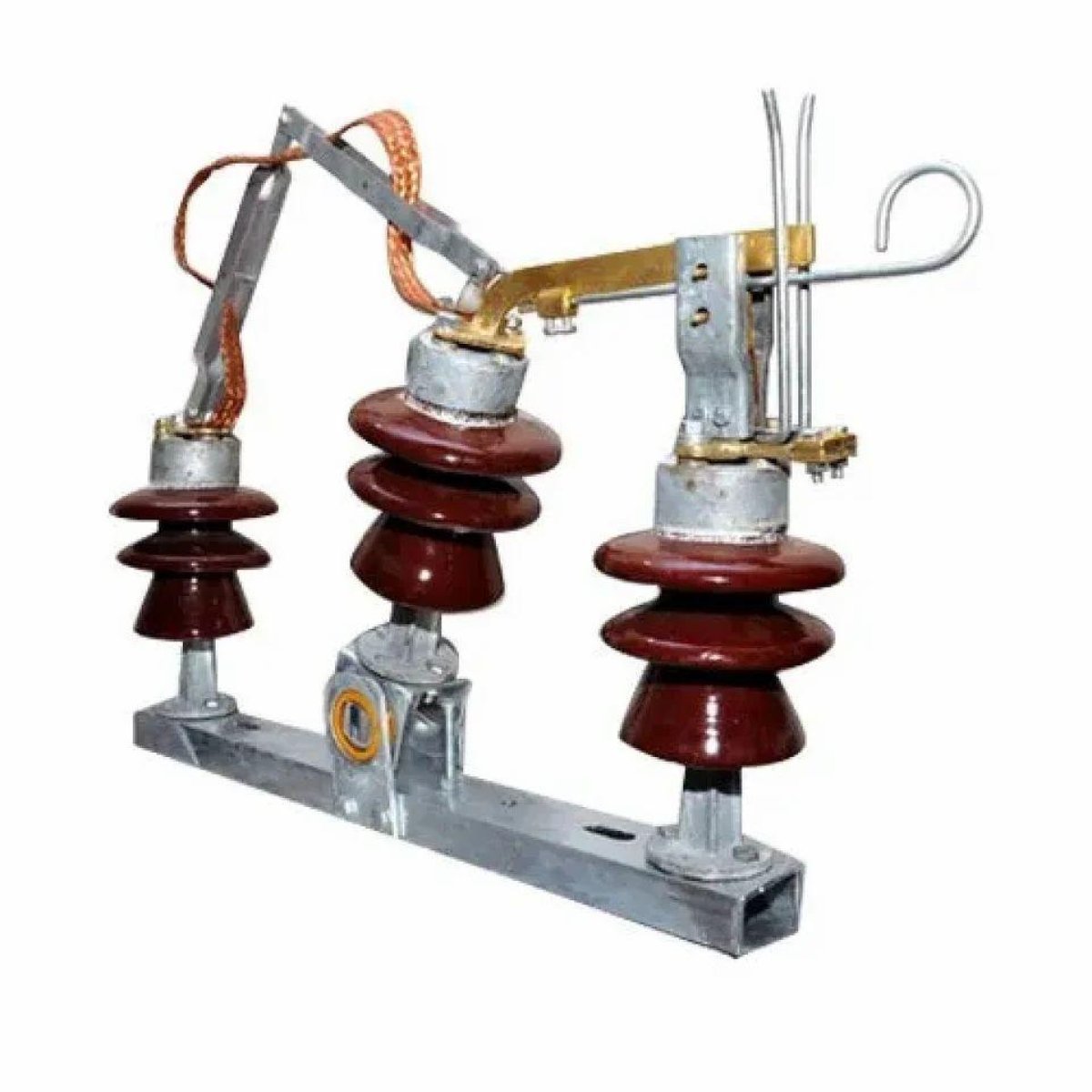

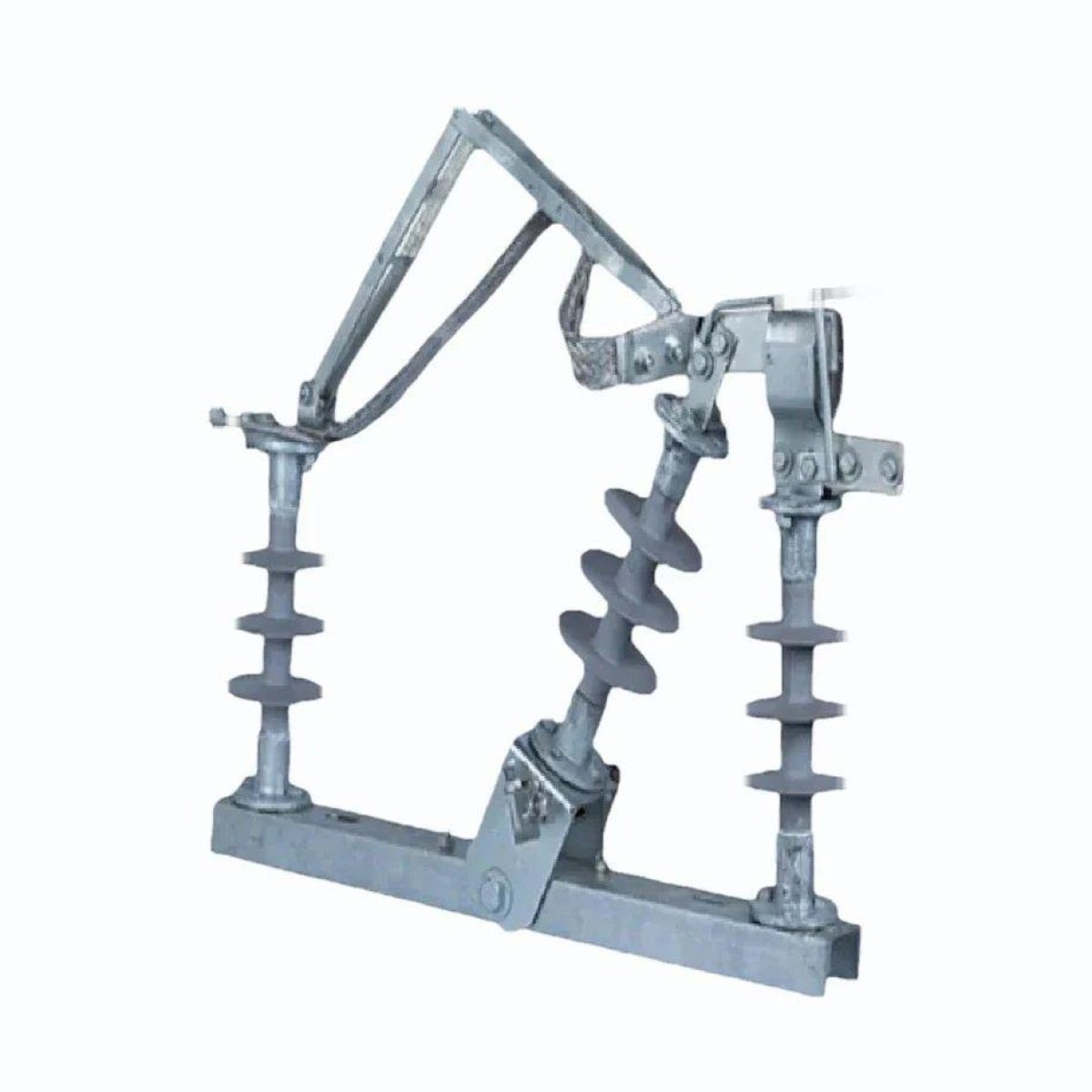

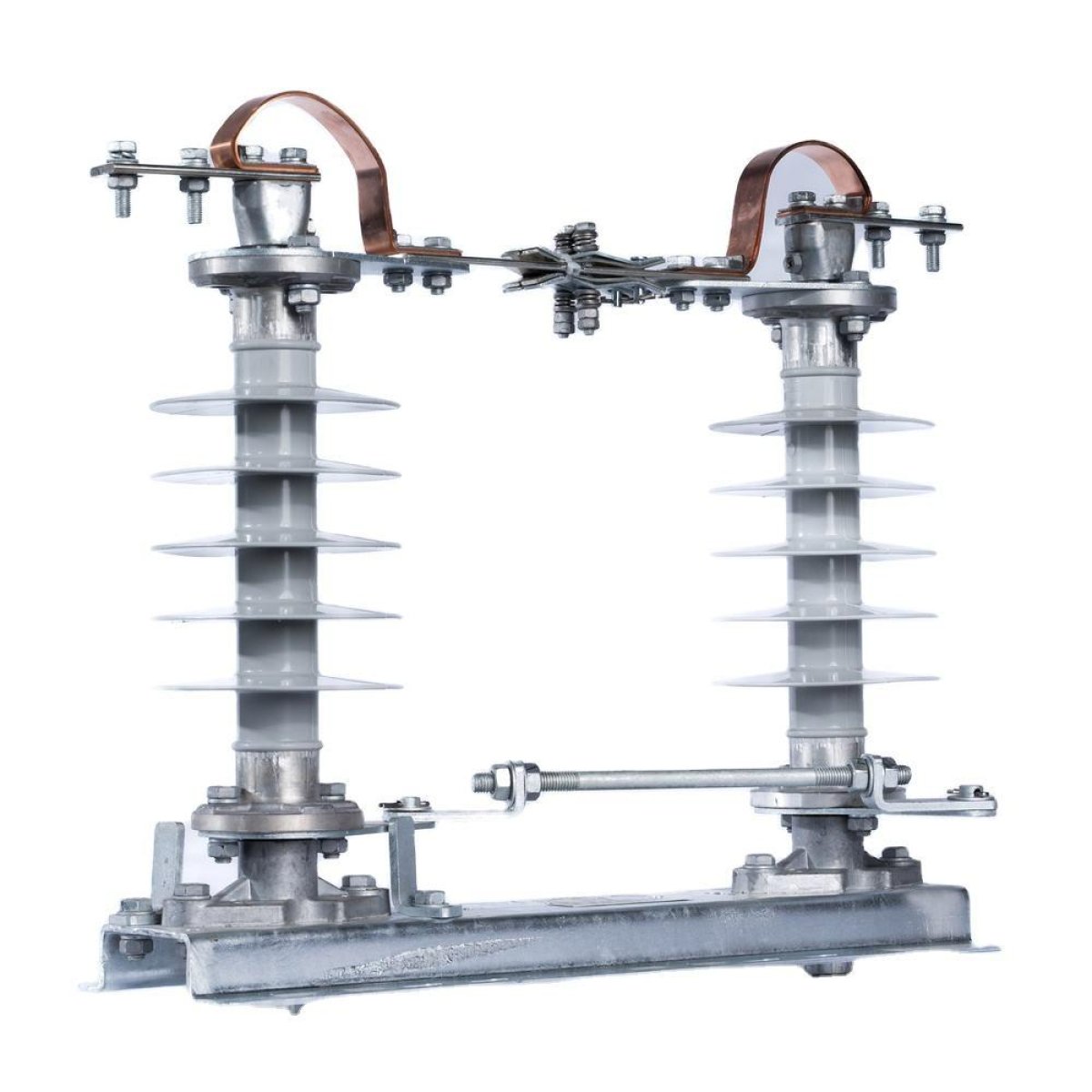

A switch used to isolate electrical equipment for maintenance after the circuit has been de-energized.
Disconnect switches provide visible electrical isolation for transformers, circuit breakers, and transmission lines. They are not intended to interrupt load current but ensure safe maintenance conditions.
Common Features
-
Visible isolation gap
-
Manual or motorized operation
-
Outdoor weatherproof design
-
High-voltage insulation
-
Robust construction
Common Use
-
Equipment isolation
-
Maintenance safety
Common Types
-
Center-Break Isolator
-
Double-Break Isolator
-
Pantograph Isolator
Advantages
-
Improves maintenance safety
-
Simple construction
-
High reliability
-
Low maintenance
-
Long operating life
Common Applications
-
Transmission substations
-
Switching yards
-
High-voltage lines
-
Transformer bays
-
Utility substations
