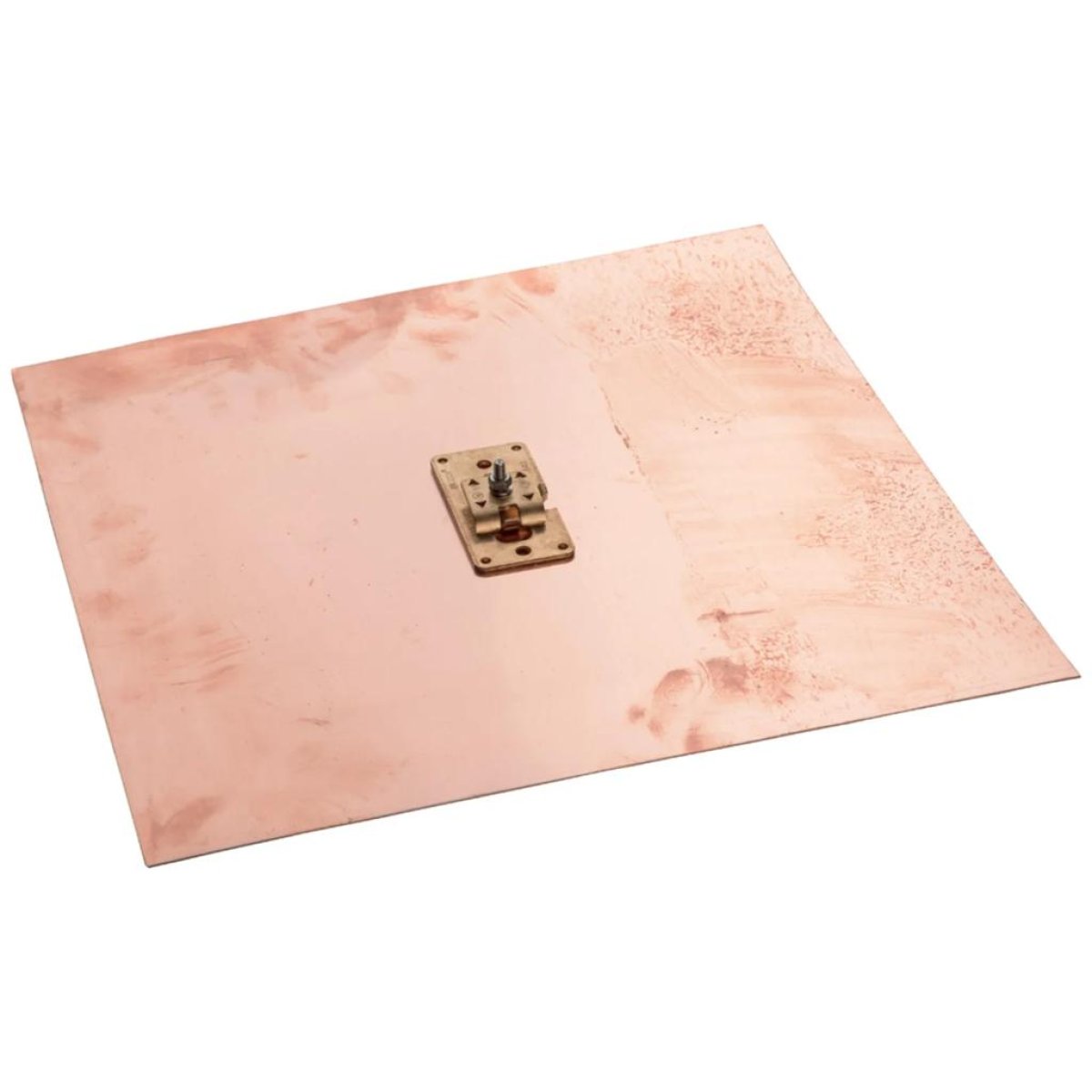

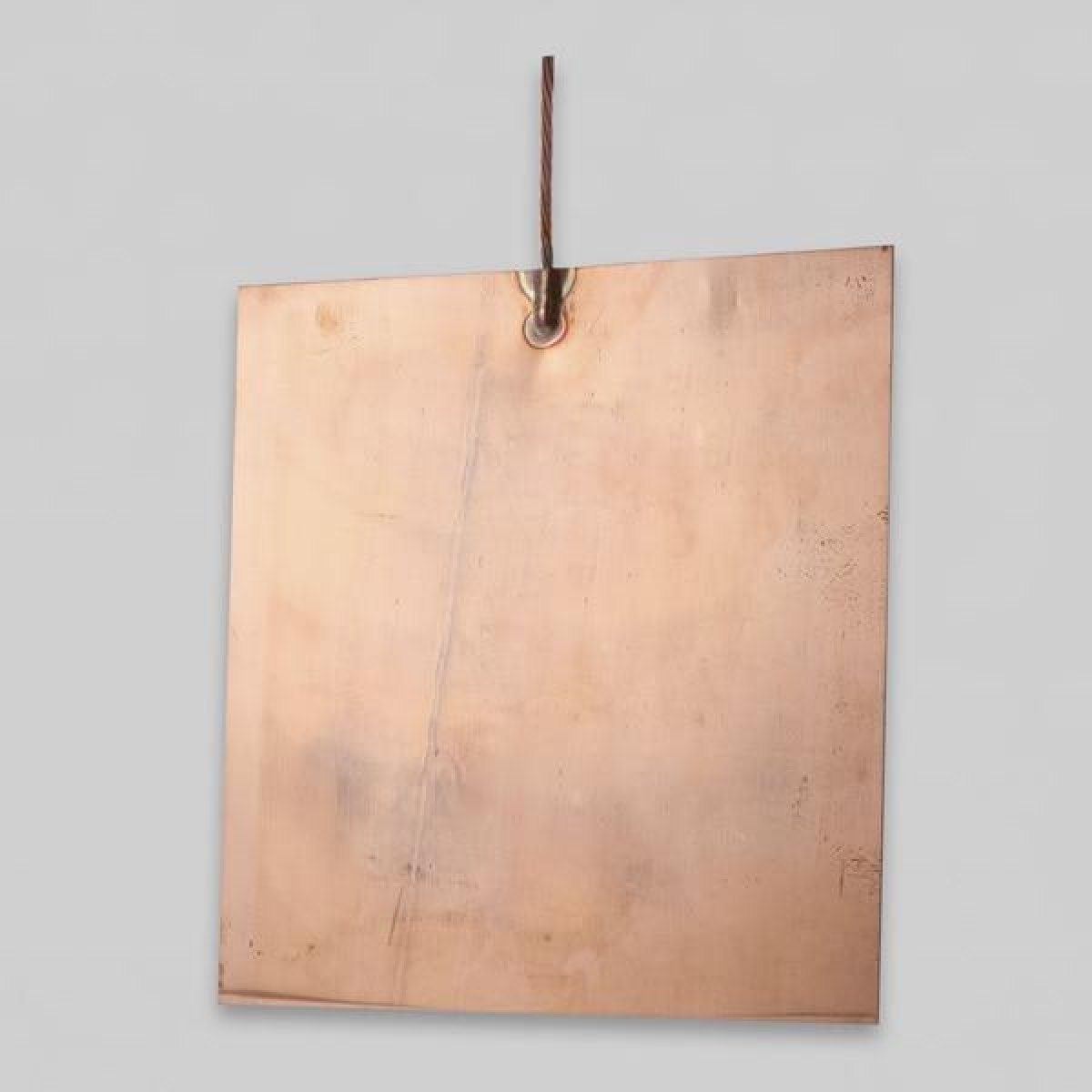

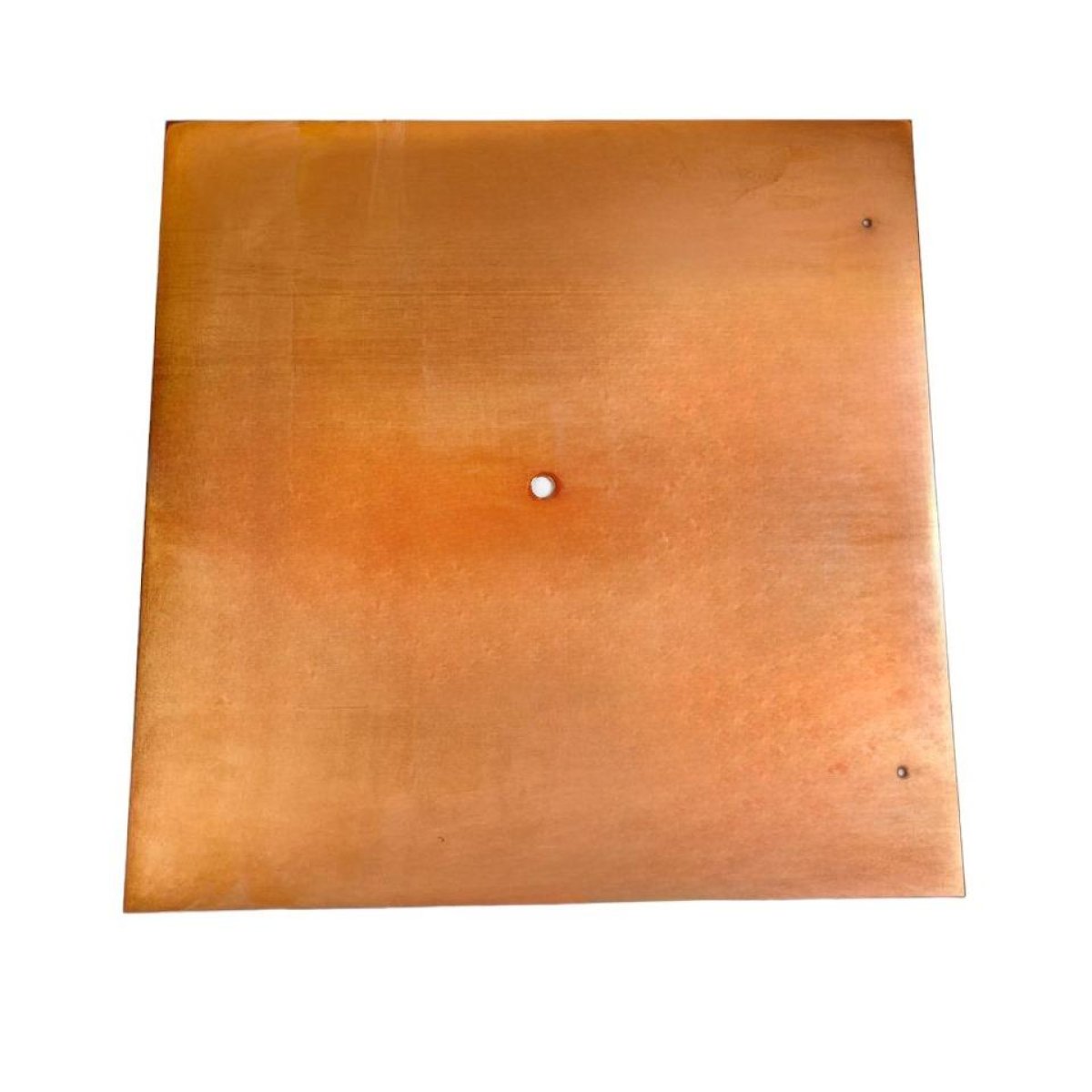

Ground plate electrodes

Ground plate electrodes are installed in excavated pits and surrounded by conductive backfill. They are commonly used where rock, shallow soil, or site conditions make rod installation difficult.

Common Features

• Copper or galvanized steel plate
• Large grounding surface area
• Corrosion-resistant
• Buried installation
• Compatible with earth enhancement materials

Common Use

• Plate earthing
• Lightning grounding
• Equipment grounding

Common Types

• Copper Plate Electrode
• GI Plate Electrode
• Earth Plate Assembly

Advantages

• Large contact area
• Reliable grounding
• Suitable for difficult soil
• Durable
• Long service life

Common Applications

• Buildings
• Electrical substations
• Industrial plants
• Telecommunications facilities
• Renewable energy systems
