Kitchen Sink (Single/Double Bowl)

Structural Fluid Dynamics for Food Service and Sanitation Tasks

In both high-volume commercial test kitchens and premium residential estates, the culinary wash zone faces intense mechanical stress, thermal shocks, and chemical exposure daily. Specifying a substandard basin leads to surface pitting, resonant clatter, localized water pooling, and structural sagging underneath the countertop line. An Enterprise-Grade Architectural Kitchen Sink System resolves these issues by using premium, heavy-gauge raw materials formed through precision press-molding or manual welding, resulting in a robust plumbing station that resists physical denting and chemical corrosion over decades of service.

The design architecture of the fixture focuses on balancing structural strength with efficient fluid mechanics:

• Material Composition: Built from heavy-duty Type 304 Stainless Steel containing an optimal 18:10 chromium-to-nickel blend, providing a non-porous surface completely immune to rust, staining, and bacterial growth.

• Acoustic Dampening Layering: The exterior underside of the basin is completely wrapped in thick, vulcanized rubber sound-deadening pads and sprayed with a heavy anti-condensation undercoating. This dampens the acoustic vibrations caused by running water or clattering pots, while preventing cold water condensation from dripping and warping wooden cabinetry below.

• Precision Pitch Drainage: The bottom panel of the basin is engineered with precision-pressed X-shaped channel grooves that slope toward the drain opening, preventing stagnant water from pooling in the corners and channeling all fluid and debris directly into the waste trap.

Strategic Structural Topologies

Architectural sinks are specified into distinct configurations based on spatial constraints and workflow balancing:

1. Single-Bowl Configuration (Maximum Volume Focus)

• The High-Capacity Basin: Eliminates internal partition barriers to provide an uninterrupted, high-capacity basin cavity.

• Best For: Commmercial bake stations and modern kitchens where washing large sheet pans, commercial mixing bowls, or stockpots requires maximum physical clearance.

2. Double-Bowl Configuration (Workflow Isolation Focus)

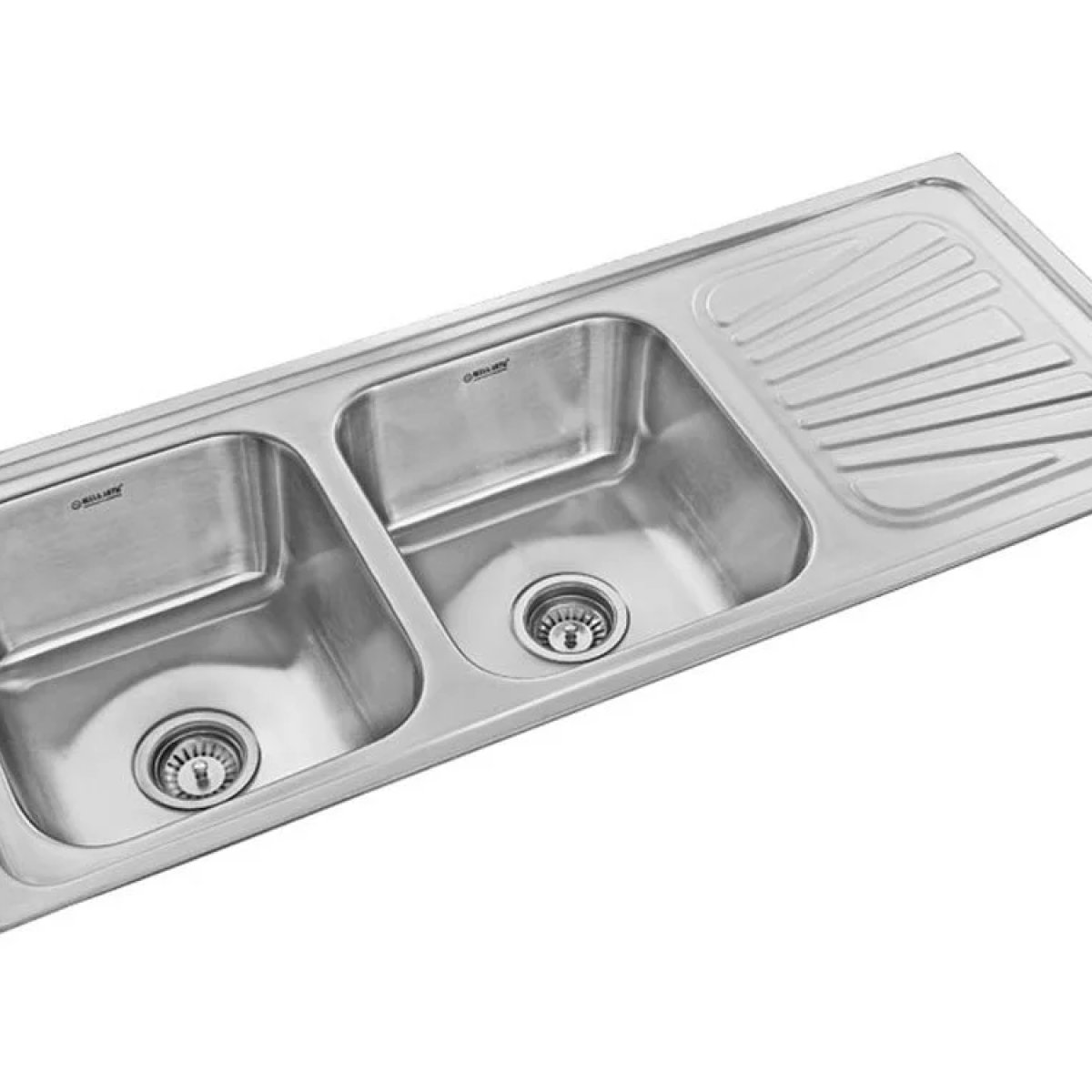

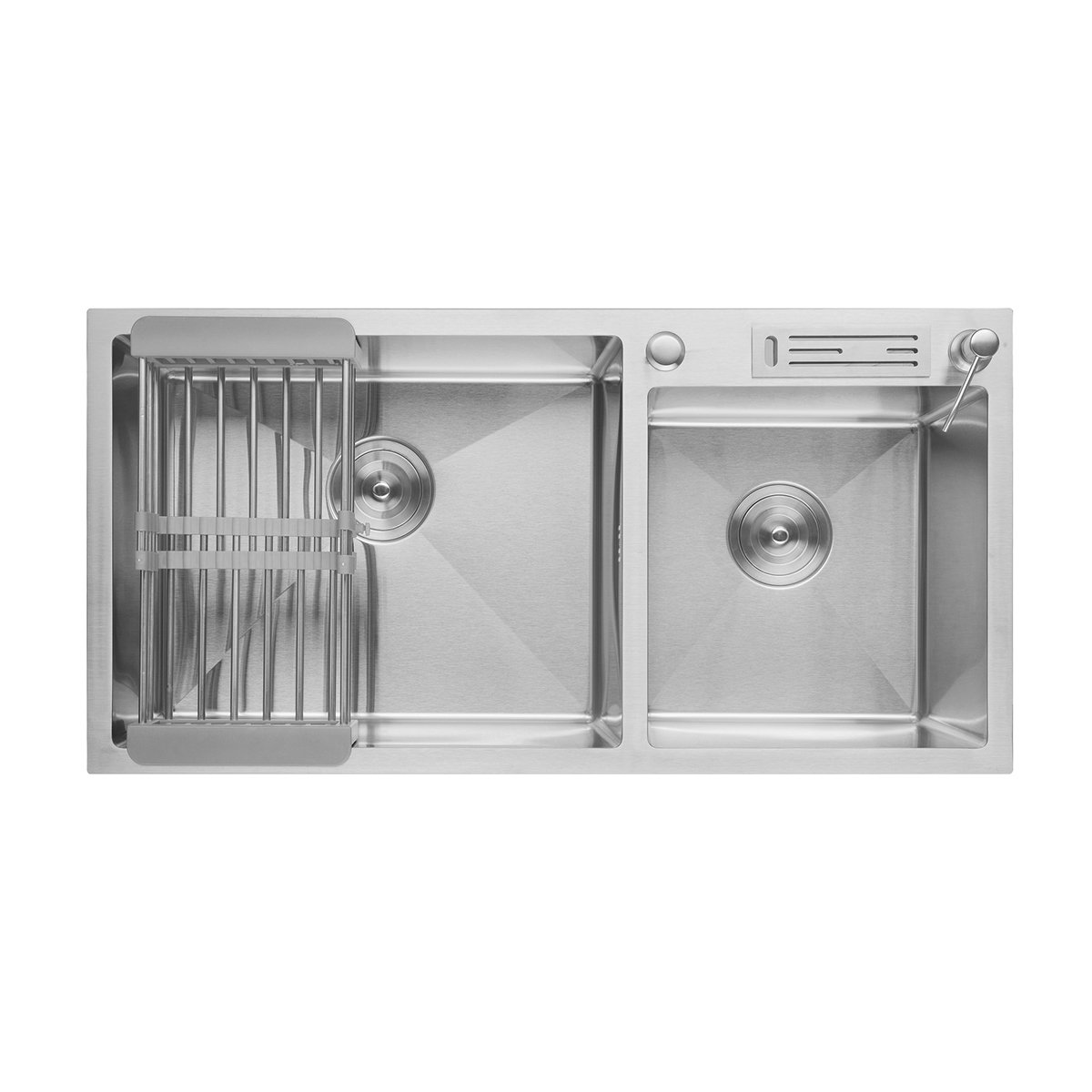

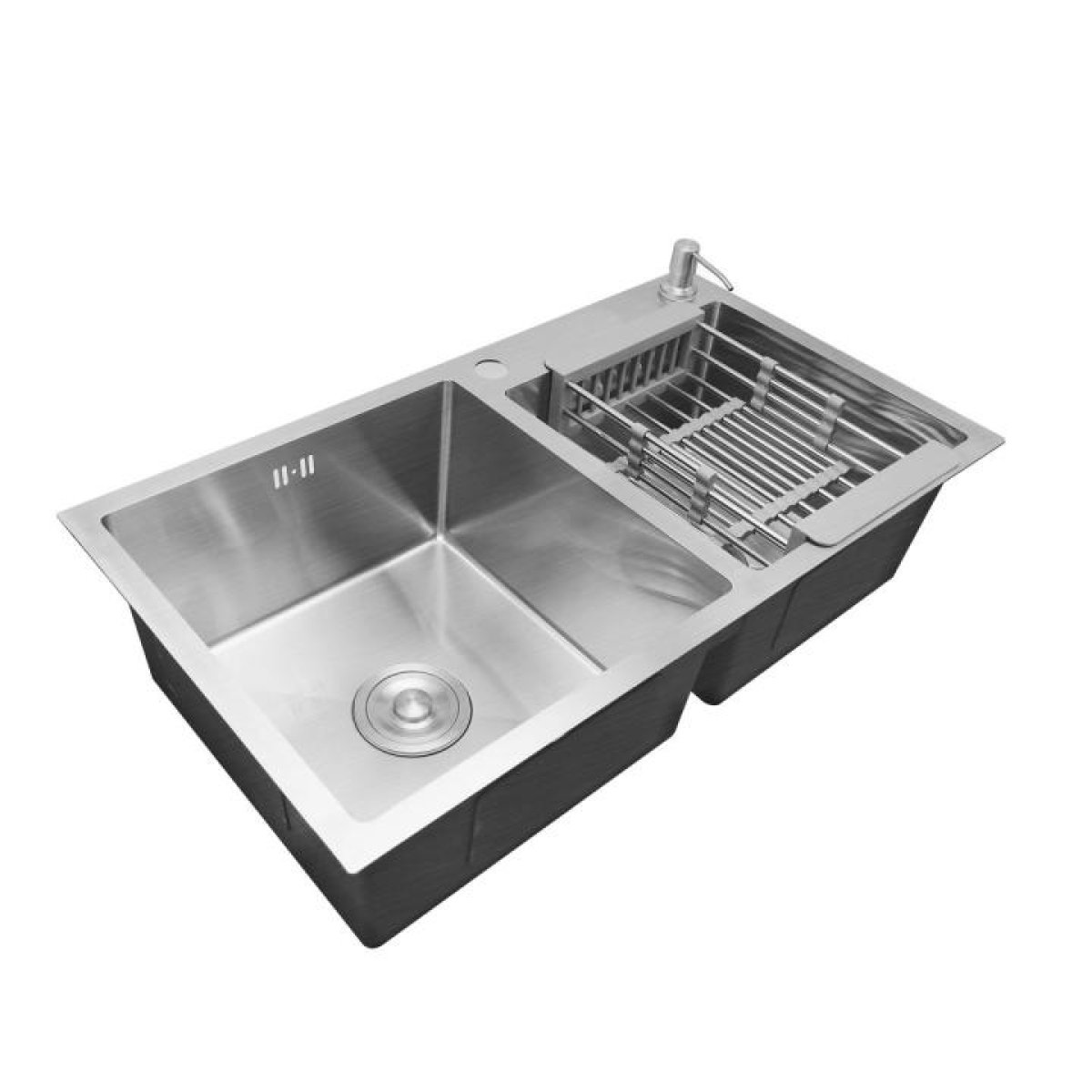

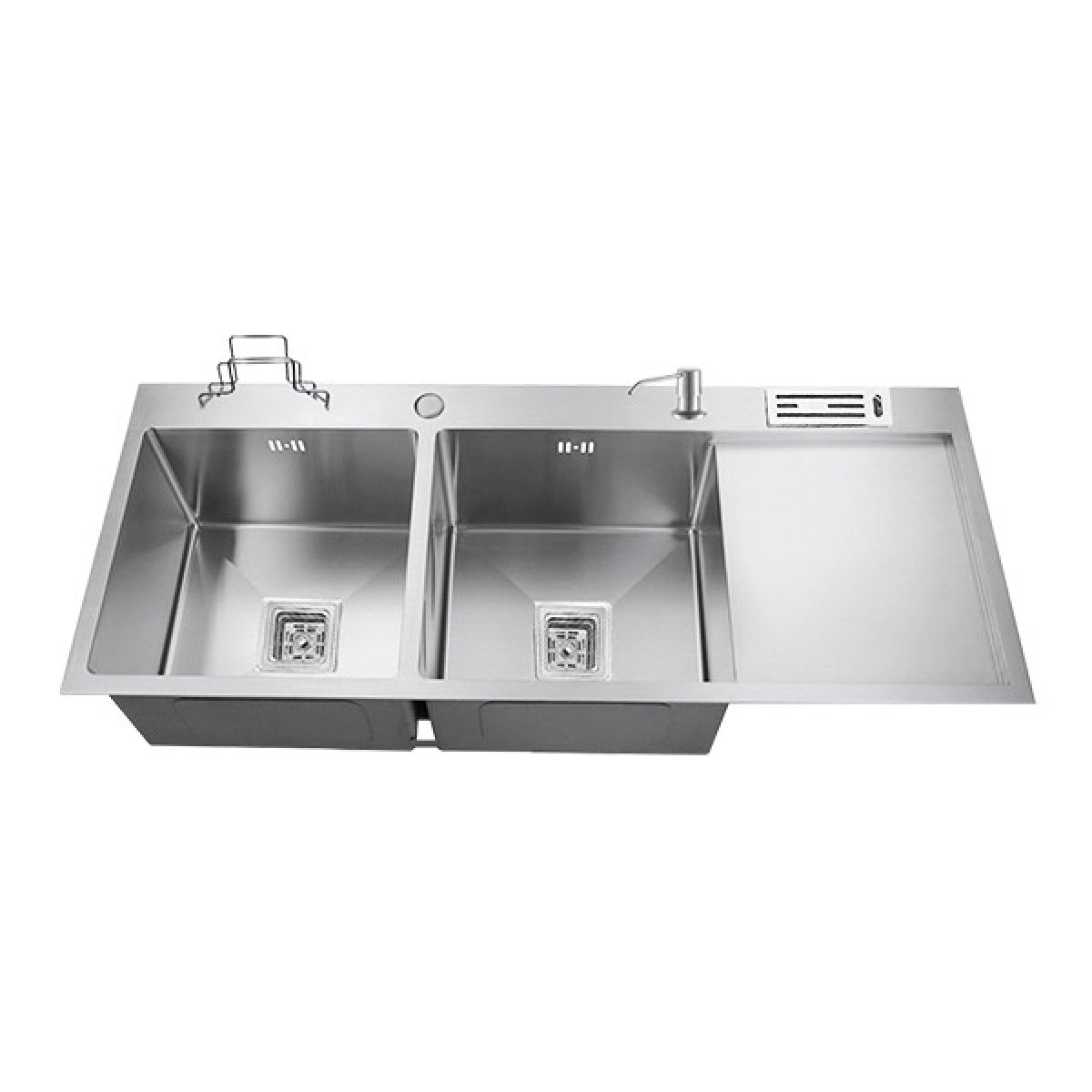

• The Multi-Task Split: Features an integrated structural center partition wall dividing the unit into two distinct basins. This can be configured as a balanced 50/50 split or a staggered 60/40 directional offset.

• Best For: Culinary environments requiring strict workflow separation—allowing one basin to be filled with sanitizing soak water while the adjacent side remains clear for food rinsing or garbage disposal operations.

Key Performance Features

• Commercial-Tier Gauge Thickness: Fabricated from thick 16-Gauge or 18-Gauge steel, creating an ultra-rigid body that eliminates flexing under the weight of heavy water loads or heavy cast-iron cookware.

• Laser-Welded R10 Tight-Radius Corners: Features precision-milled $10\text{mm}$ tight-radius (R10) inner corners, presenting a clean, modern aesthetic while providing smooth curves that prevent food debris buildup and allow simple wiping maintenance.

• Universal Dual-Mount Rim Profiles: Outfitted with a versatile rim flange that supports clean Under-mount installations (clamped entirely below stone countertops for seamless debris wiping) or classic Drop-in / Top-mount setups (utilizing a perimeter lip that rests flat on laminate surfaces).

• Industrial Anti-Condensation Vapor Barrier: Engineered with a heavy-duty composite outer spray coating that insulates the basin frame, blocking thermal energy transfer and stopping ambient moisture from condensing under the counter.

Technical Performance MatrixEngineering Metric ParameterPremium 16-Gauge Single-Bowl BasinArchitectural 18-Gauge Double-BowlPhysical Compartment LayoutSingle Continuous Open CavityDual Shared Partition Basins (50/50 or 60/40)Material Composition BaseType 304 Surgical Stainless SteelType 304 Structural Stainless SteelMetal Sheet Thickness GaugeHeavy-Duty 16-Gauge ($1.5\text{ mm}$ Thick)Standard Business 18-Gauge ($1.2\text{ mm}$ Thick)Corner Radius GeometryPrecision R10 ($10\text{mm}$ Tight Radius)Soft R20 or Traditional Rounded ProfileDrainage Aperture PlacementRear-Set Offset / $3.5\text{-Inch}$ StandardCenter-Set Dual / $3.5\text{-Inch}$ StandardsUnderside Sound Isolation$360^\circ$ Heavy Rubber Pads + Spray GuardSectional Base Sound Pads + UndercoatMounting Installation InterfaceUnder-mount / Drop-In Flush ProfileUnder-mount / Top-mount Flange RimMinimum Cabinet Width BaseRequires $36\text{-Inch}$ Base Frame ChassisRequires $36\text{-Inch}$ or $42\text{-Inch}$ Base ChassisCompliance CertificationscUPC Certified / ASME A112.19.3 / CSA B45.4cUPC / ASME CompliantStandard Procurement Package Components

• Precision-Engineered Stainless Steel Kitchen Sink Core Basin

• Custom-Fit Heavy Stainless Steel Bottom Protective Rinse Grids with Rubber Feet

• Luxury $3.5\text{-Inch}$ Removable Basket Strainer Drain Assembly Kit

• Multi-Angle Countertop Under-mount Securing Clamps and Structural Fasteners

• Full-Scale Dense Cardboard Cutout Installation Template Blueprint Sheet

• Required System Add-ons: Kitchen Deck-Mount Faucets, Flexible Braided Water Supply Hoses, PVC/ABS P-Trap Drainage Lines, and Food Waste Garbage Disposals (Sold Separately based on localized layout plumbing architectural constraints)
