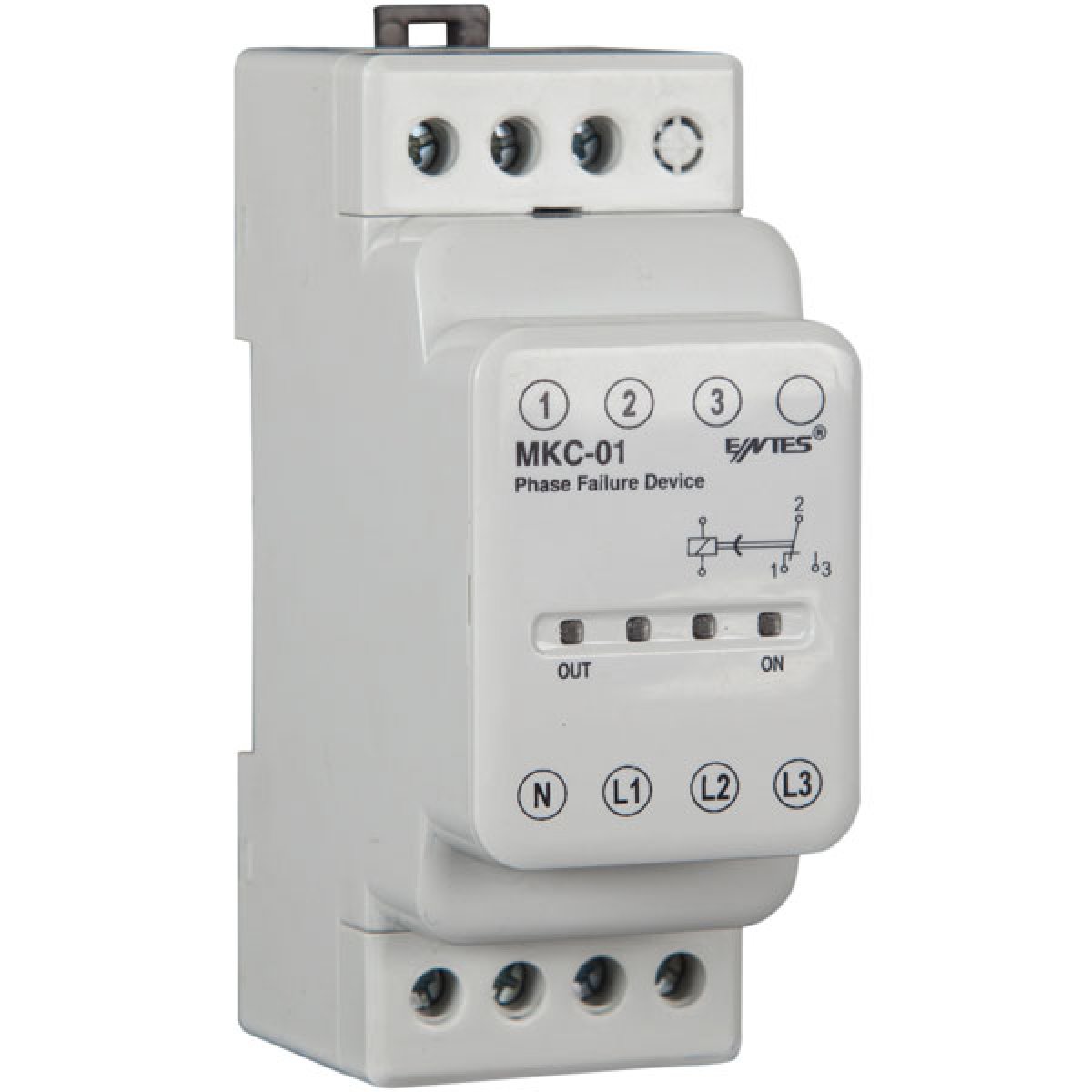

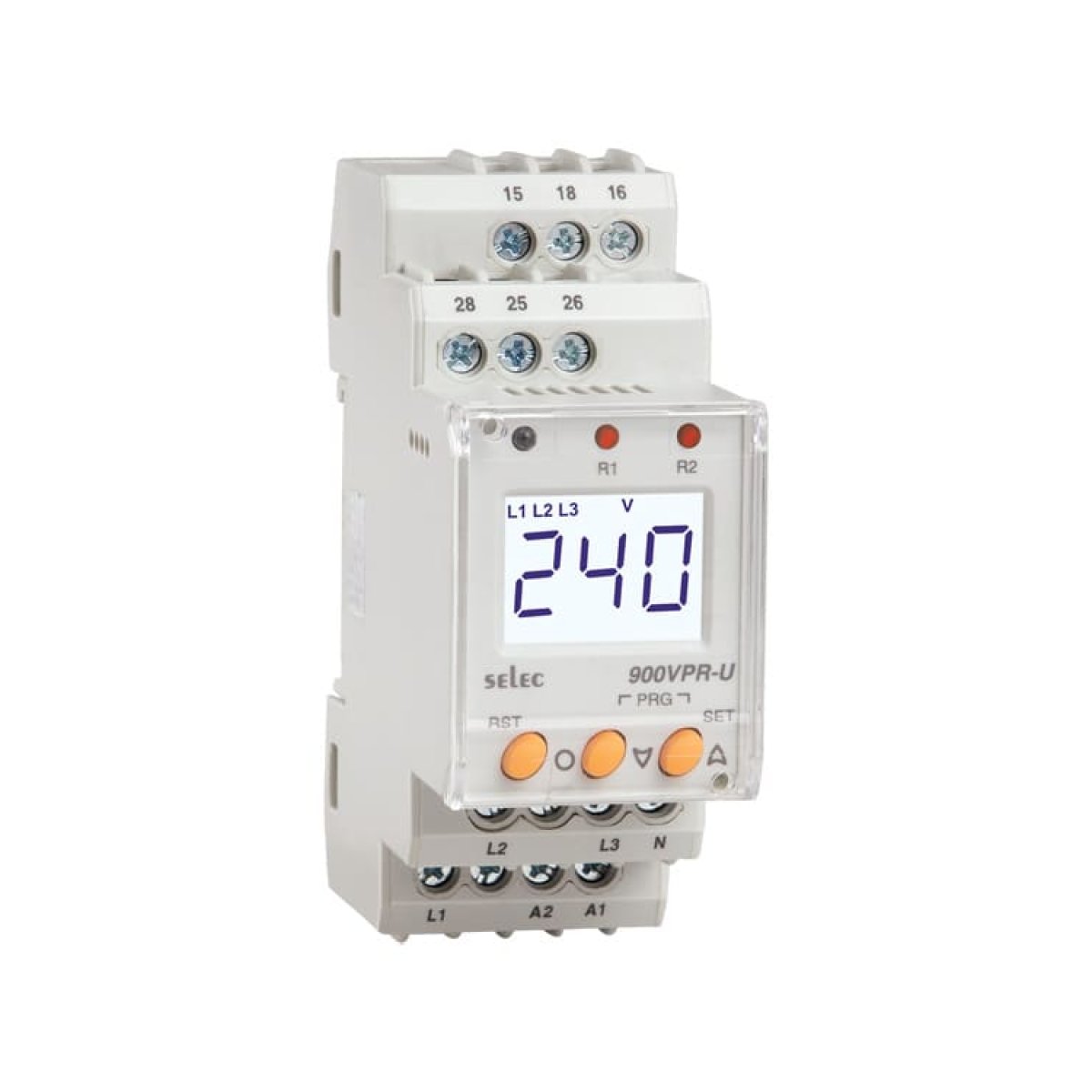

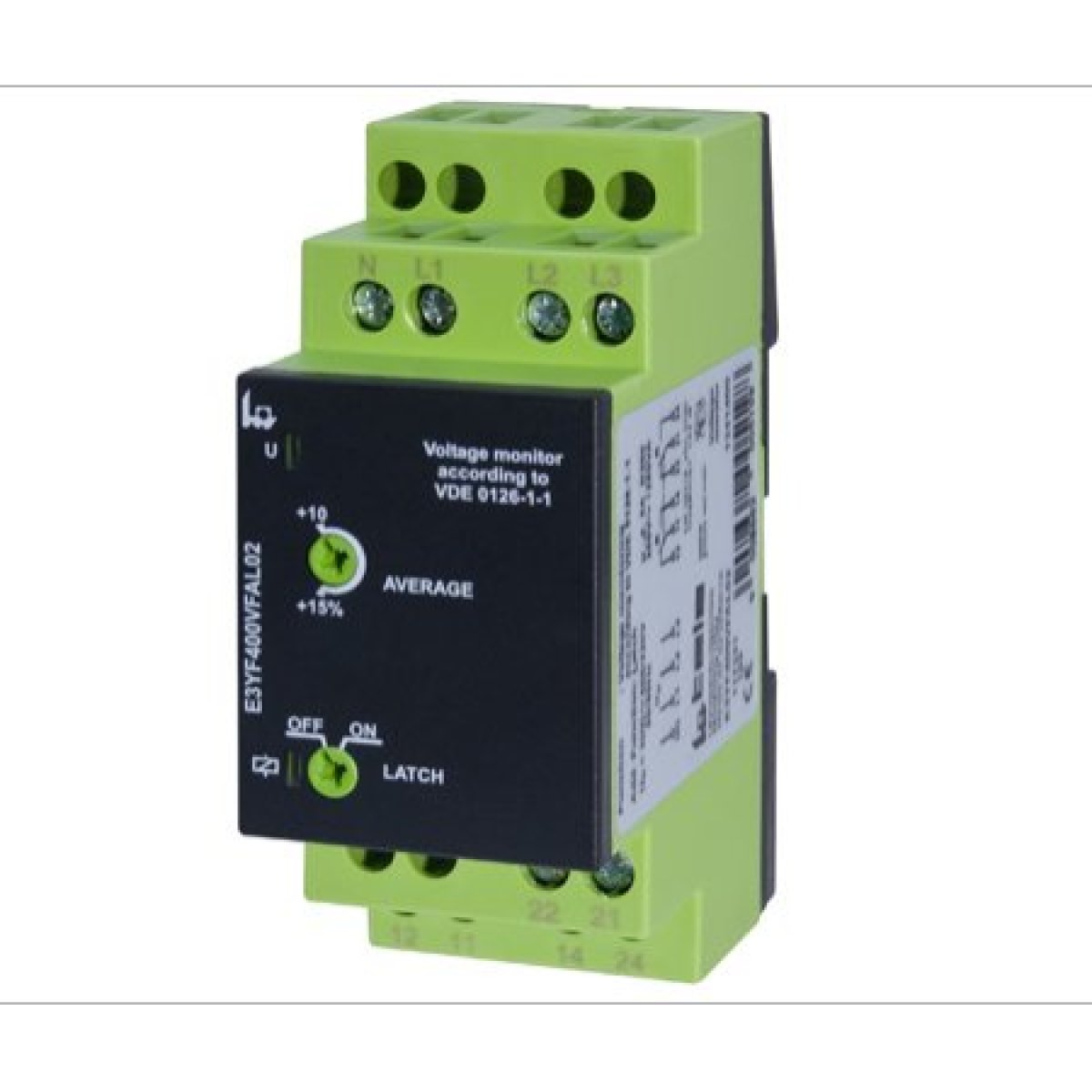

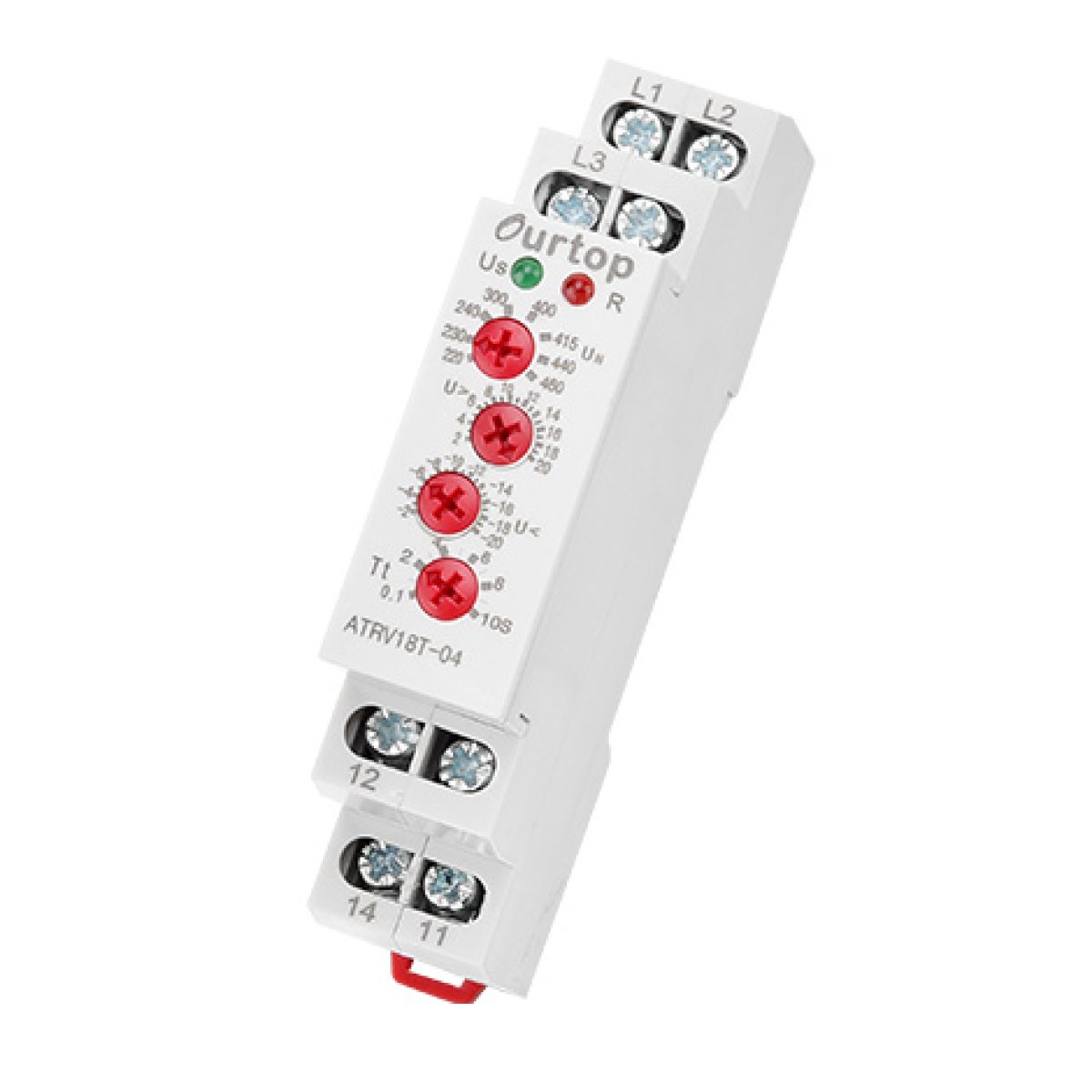

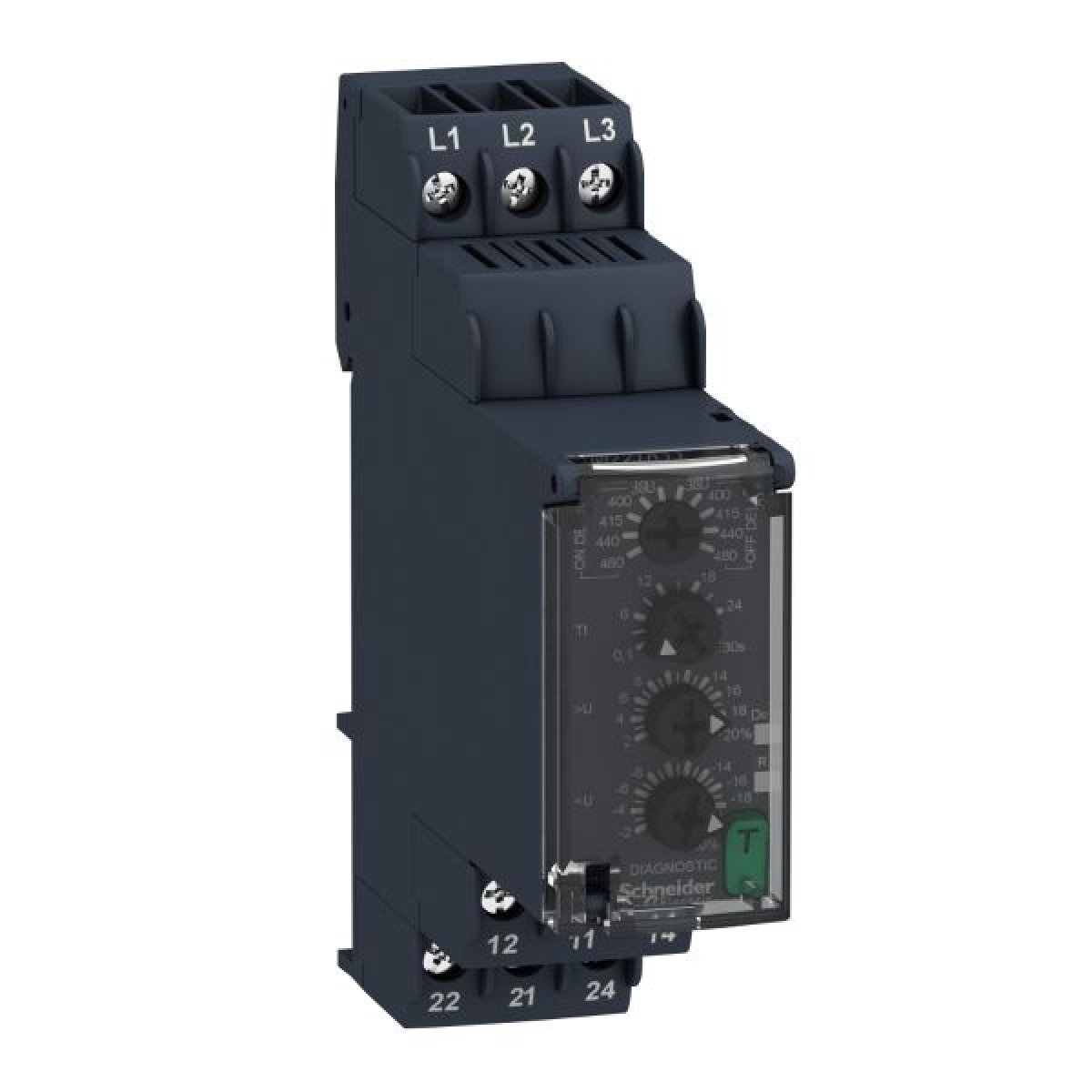

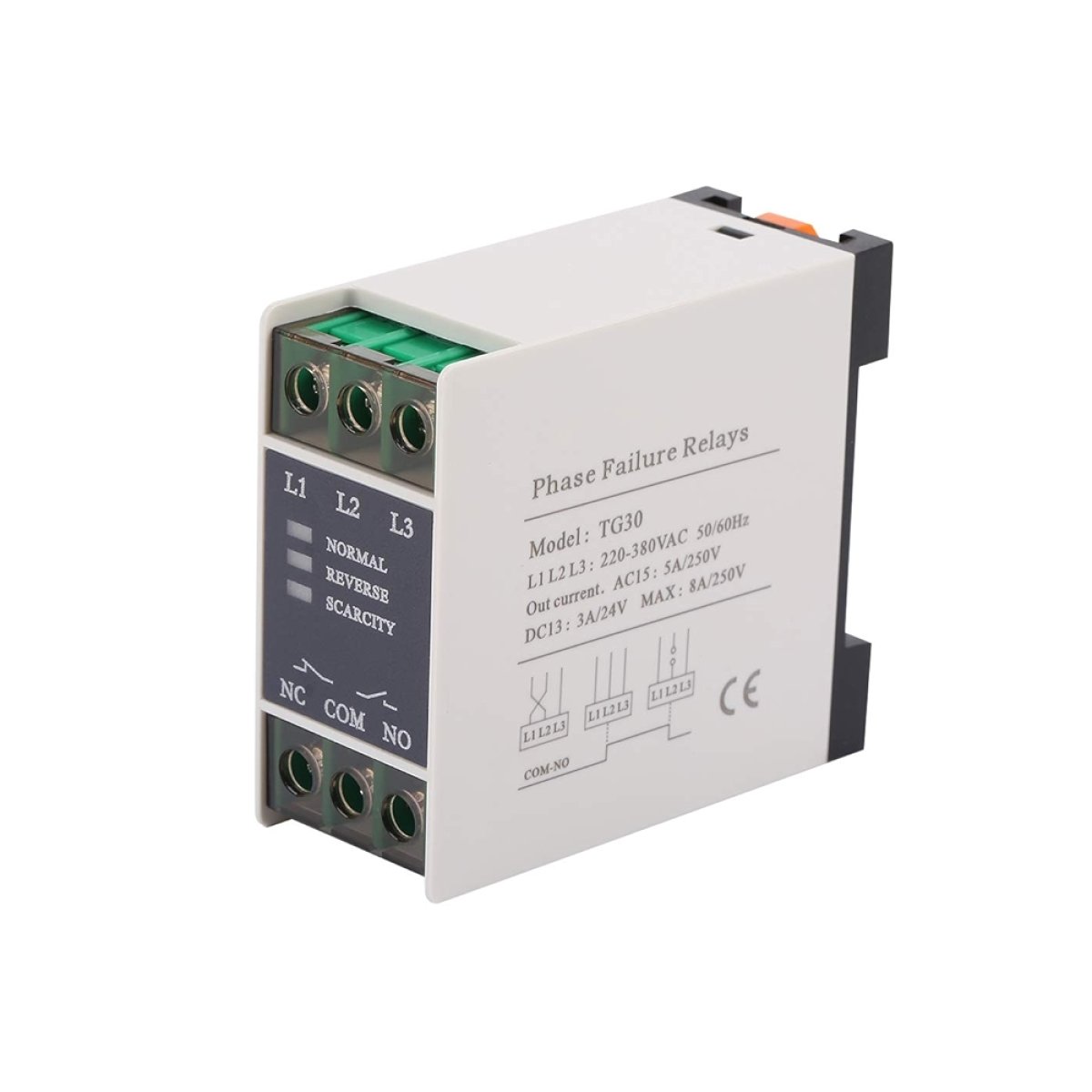

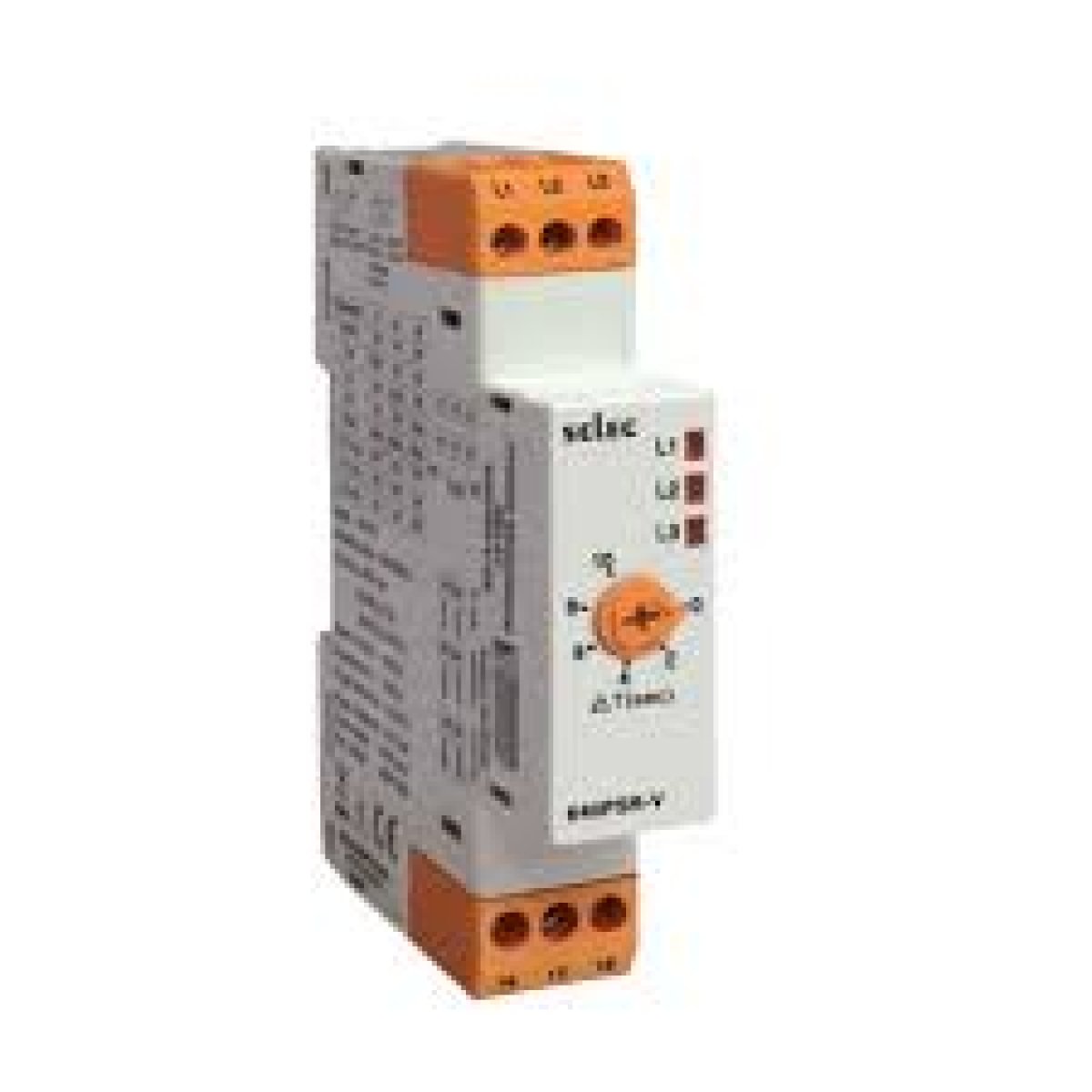

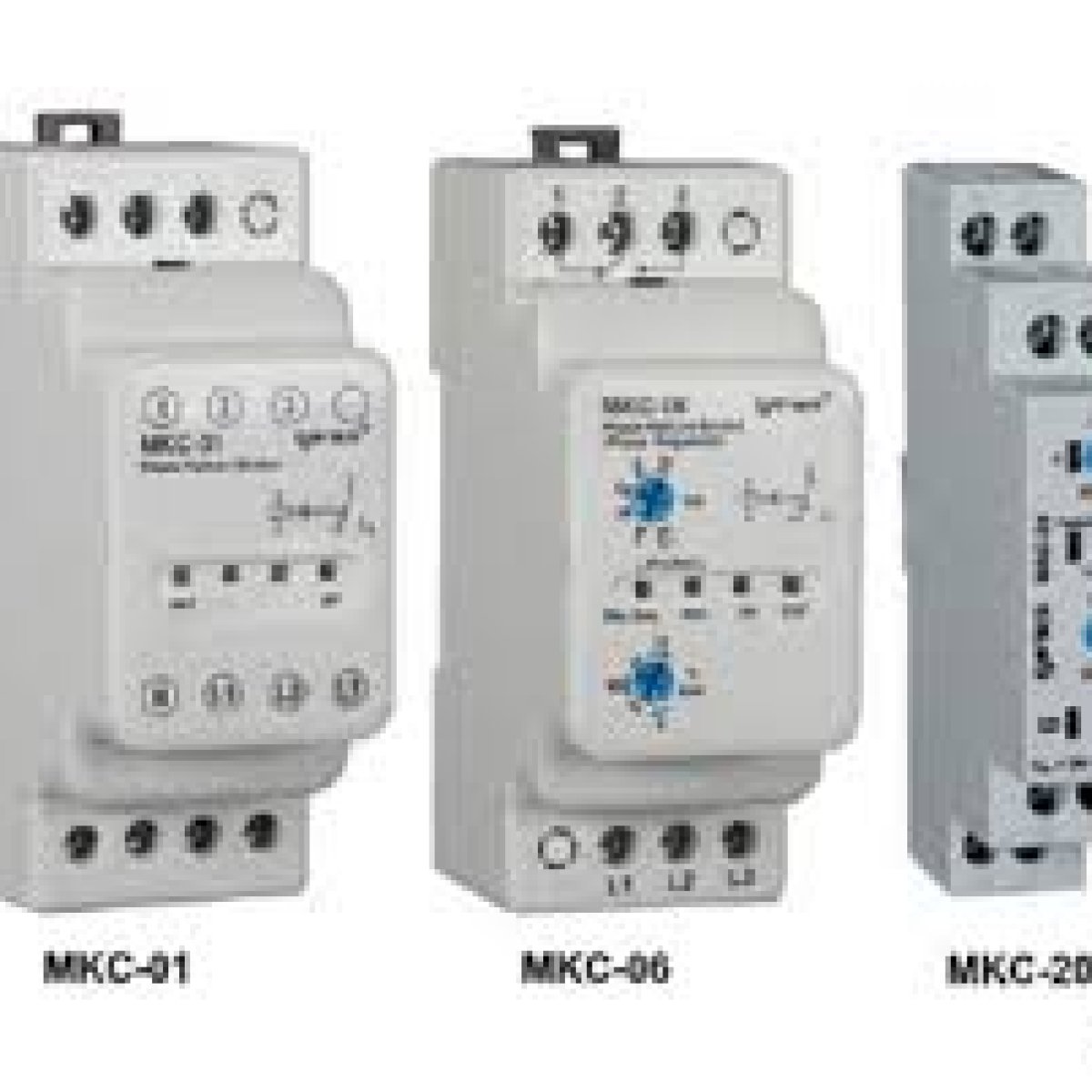

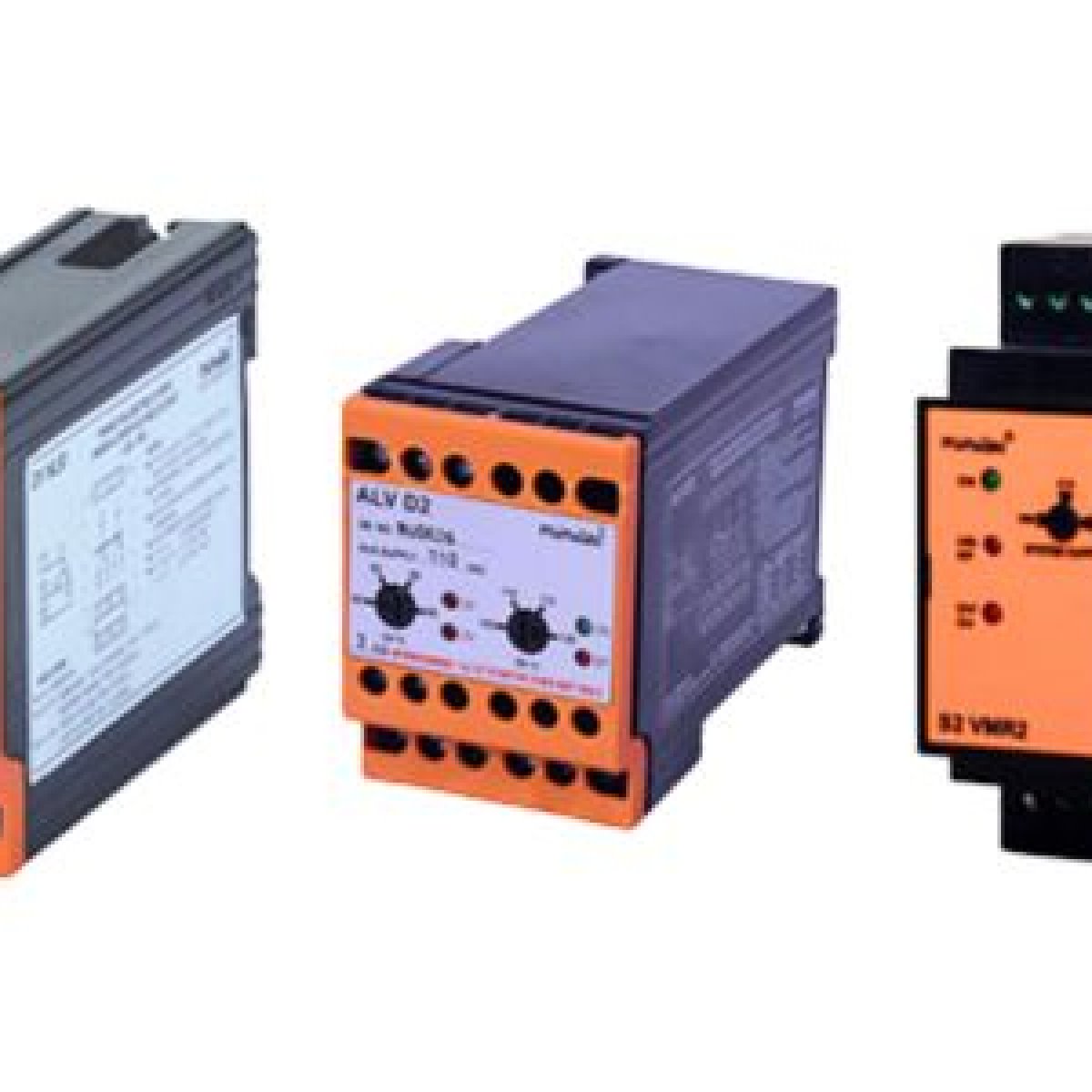

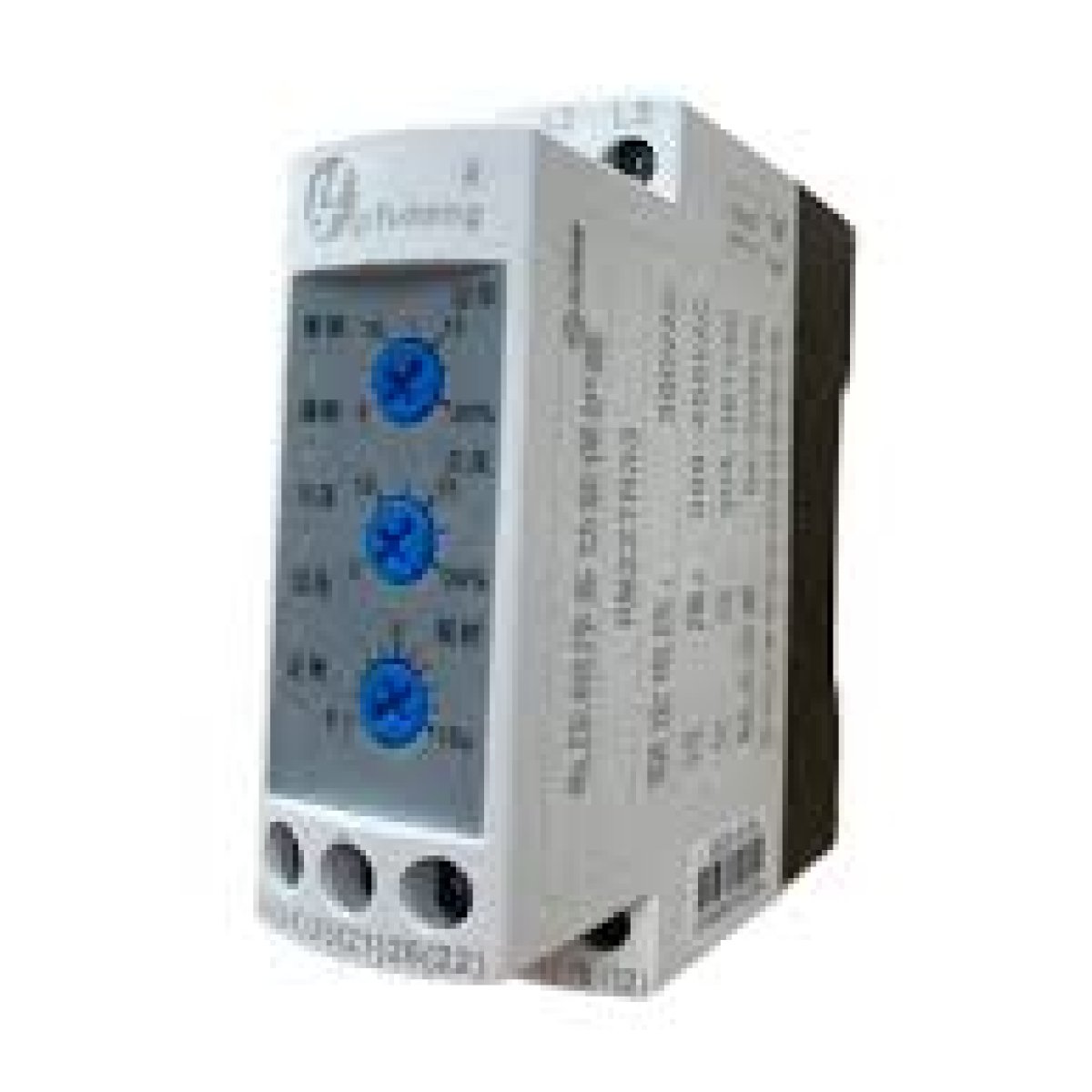

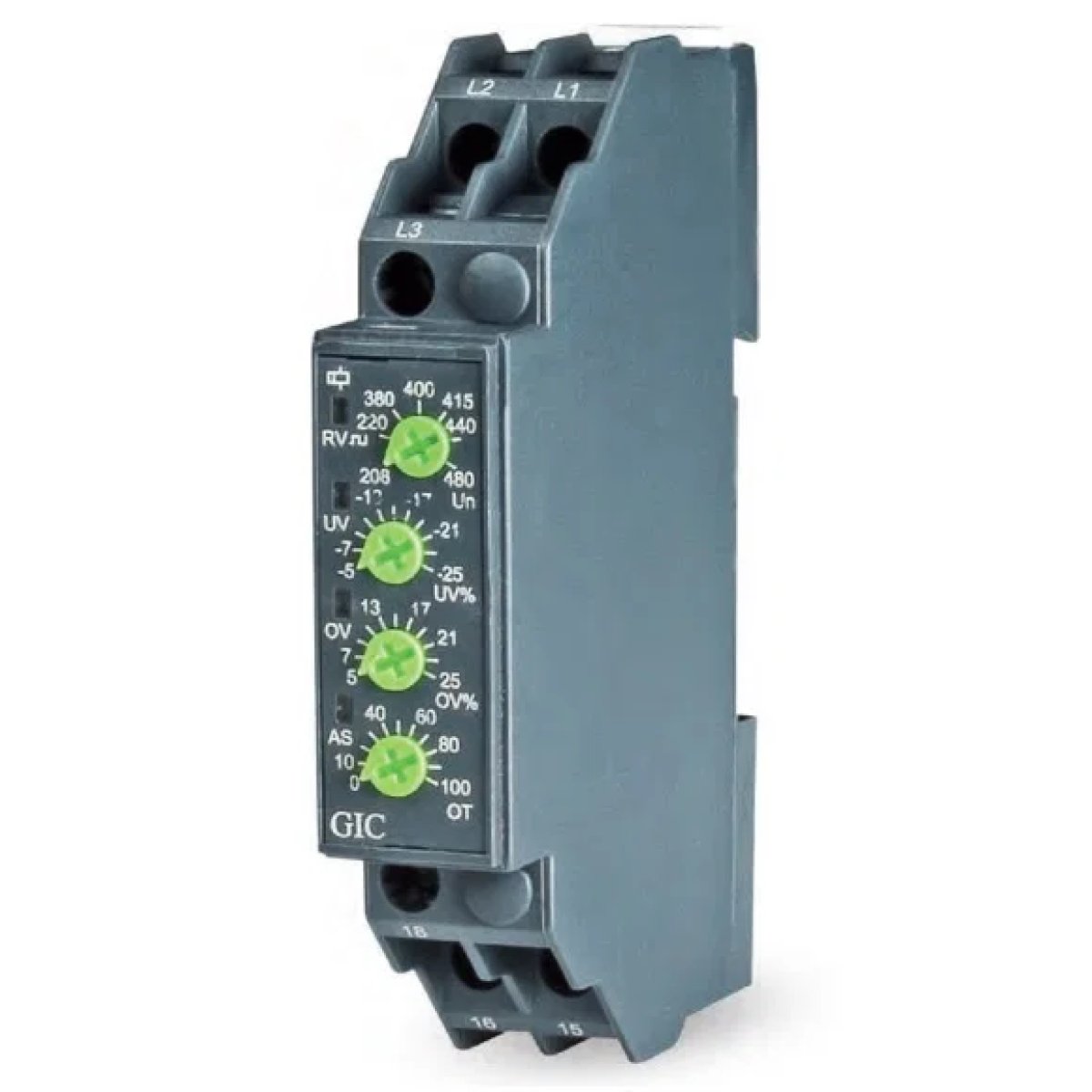

Three-Phase Failure & Protection Relay is a critical industrial safety component engineered to safeguard expensive motorized machinery from power supply anomalies. By continuously analyzing incoming multi-phase electrical lines, this device acts as an automated defense system against unstable power grids. It is an essential addition to industrial control panels managing HVAC compressors, water pumps, conveyor belts, and heavy manufacturing machinery.
Key Features
- Design & Frame: The relay is encased in a compact, highly durable, and flame-retardant polycarbonate housing designed to handle harsh industrial settings. The front face features clear, color-coded LED indicators that provide instant visual diagnostics, showing whether the system status is healthy or experiencing a specific electrical fault.
- Mechanism & Fault Detection: Powered by a highly accurate microcontroller circuit, this device real-time monitors three-phase lines for phase loss (failure), phase reversal (incorrect sequence), and severe voltage asymmetry. The moment an abnormality is detected, the internal electromagnetic relay drops out to instantly isolate your equipment before thermal damage can occur.
- Form Factor & Installation: Showcases a standardized, space-saving profile designed to snap effortlessly onto industrial 35mm DIN rails. The unit features heavy-duty, clearly labeled screw-terminal blocks on the top and bottom, facilitating clean wiring paths inside dense electrical enclosures.
- Performance & Safety: Engineered with adjustable trip delay timers to prevent nuisance tripping from momentary voltage drops. It provides absolute electrical isolation between the high-voltage sensing lines and the low-voltage control loop, offering a high-reliability protection cycle that extends the lifespan of three-phase industrial motors.
