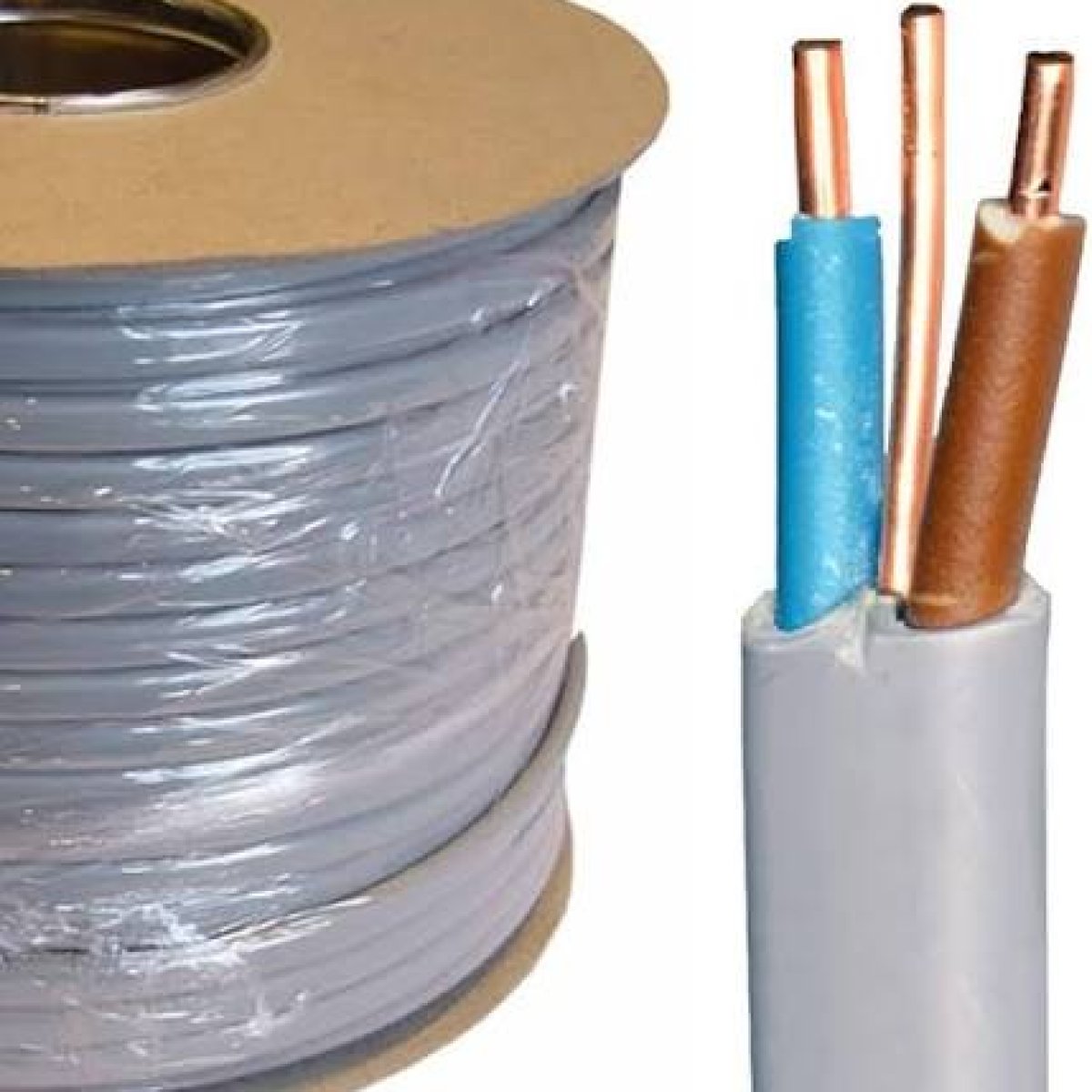

Premium flat Twin & Earth (T&E) structural wiring cable – 99.9% pure copper
Lay a rock-solid, incredibly safe foundation for your property's electrical grid with our Premium Twin & Earth (T&E) Cable. This flat, surface-mount and conduit-friendly fixed wiring cable is the global industry standard for domestic and light commercial power distribution. It is specifically engineered to make building installations faster, cleaner, and fully compliant with modern earthing and grounding safety regulations.
Dual-core insulation with built-in ground protection

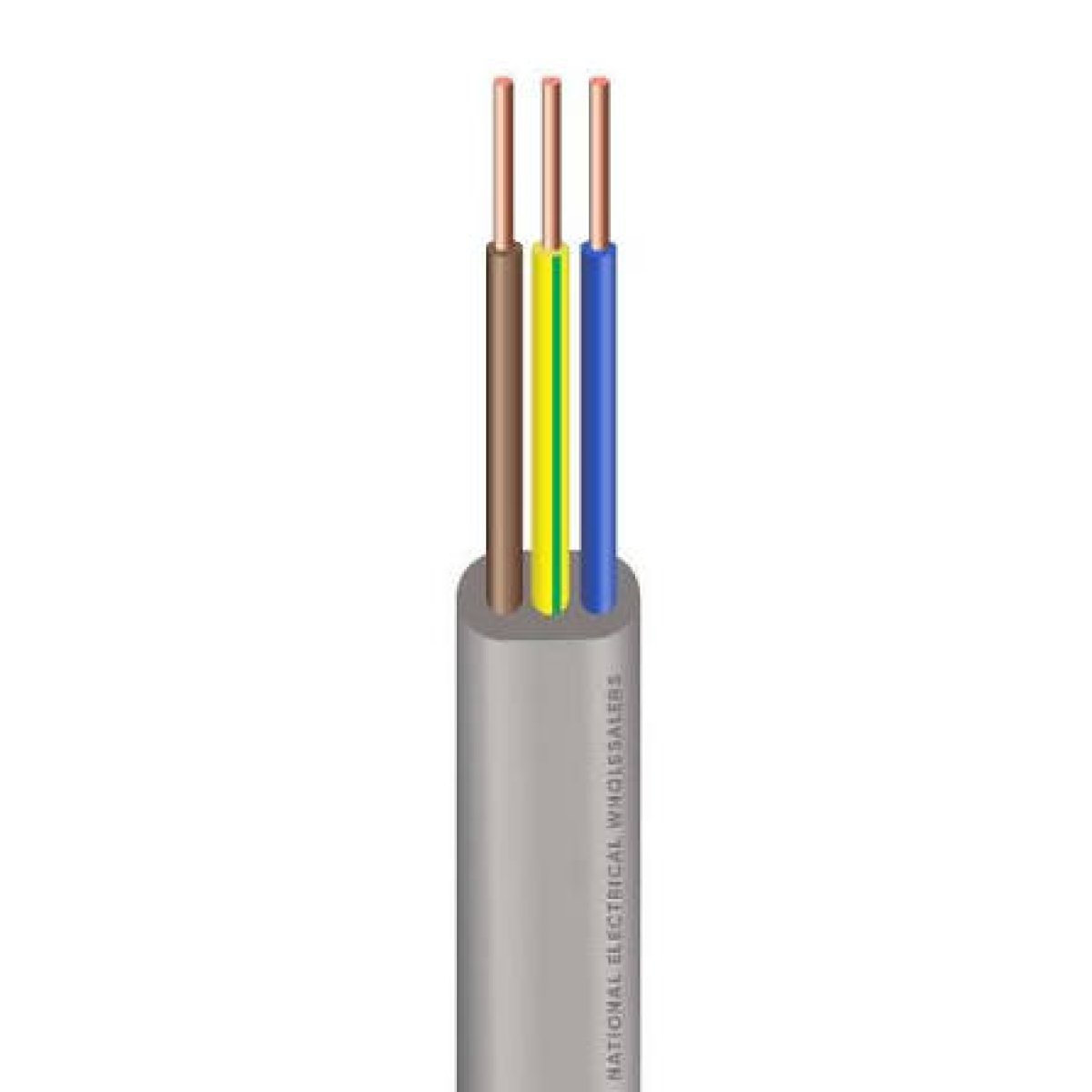

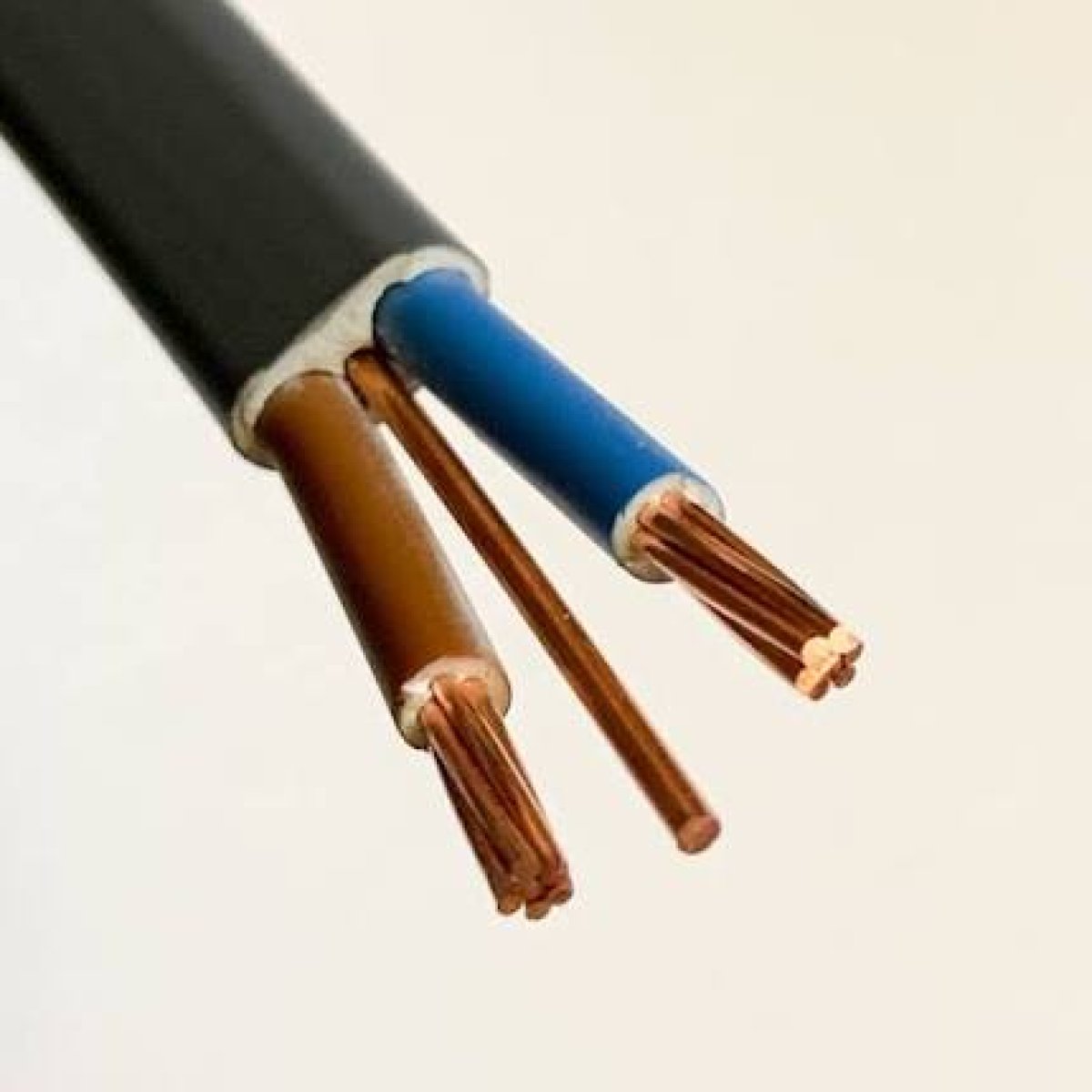

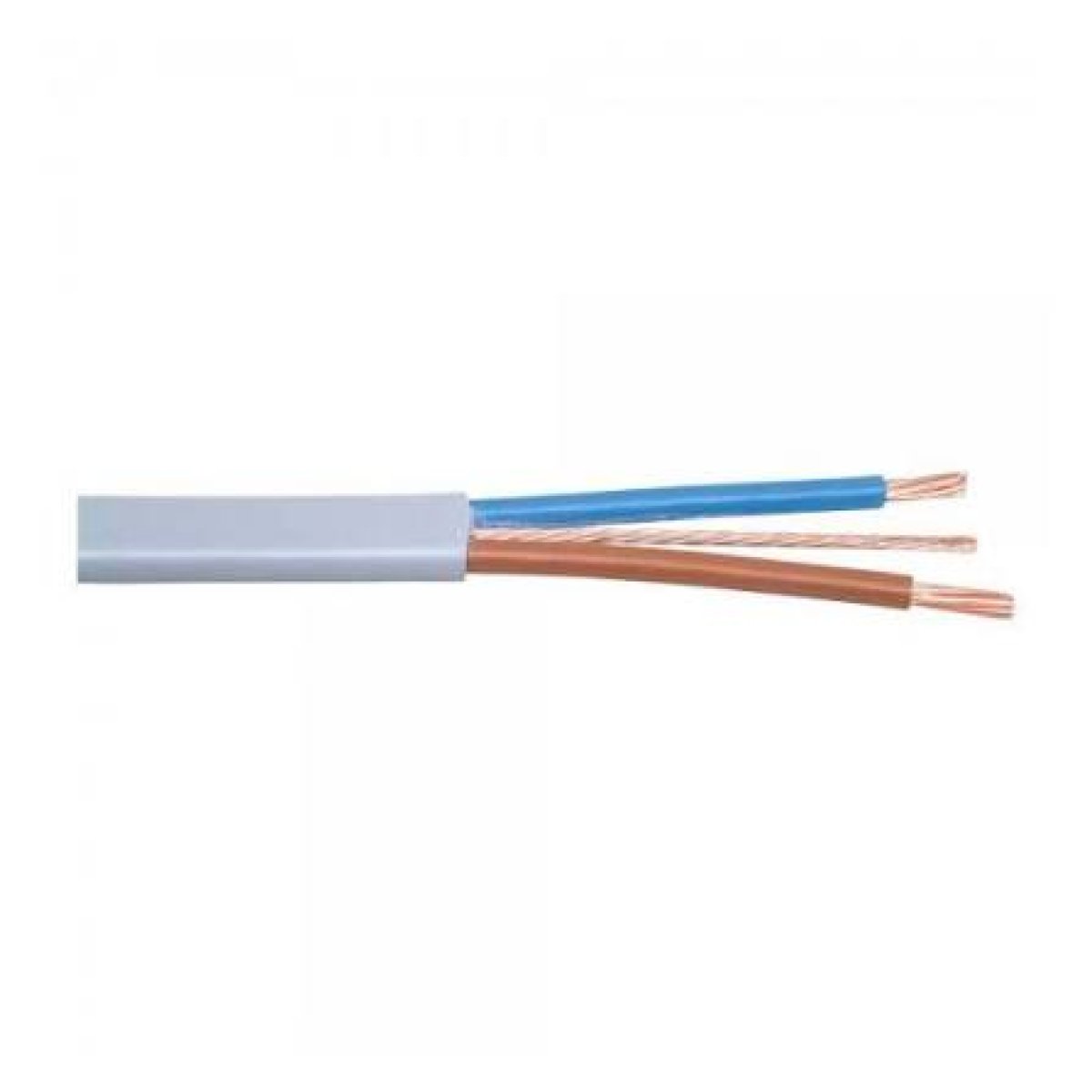

The "Twin" component comprises two individually color-coded cores (typically Red/Black or Brown/Blue for Live and Neutral) wrapped in high-dielectric insulation to prevent current leakage. The "Earth" component features a solid, uninsulated central bare copper conductor running down the middle. This specialized configuration ensures that an immediate, low-resistance path to the ground is always present, instantly tripping circuit breakers in the event of an electrical fault to prevent fatal structural fires or shocks.

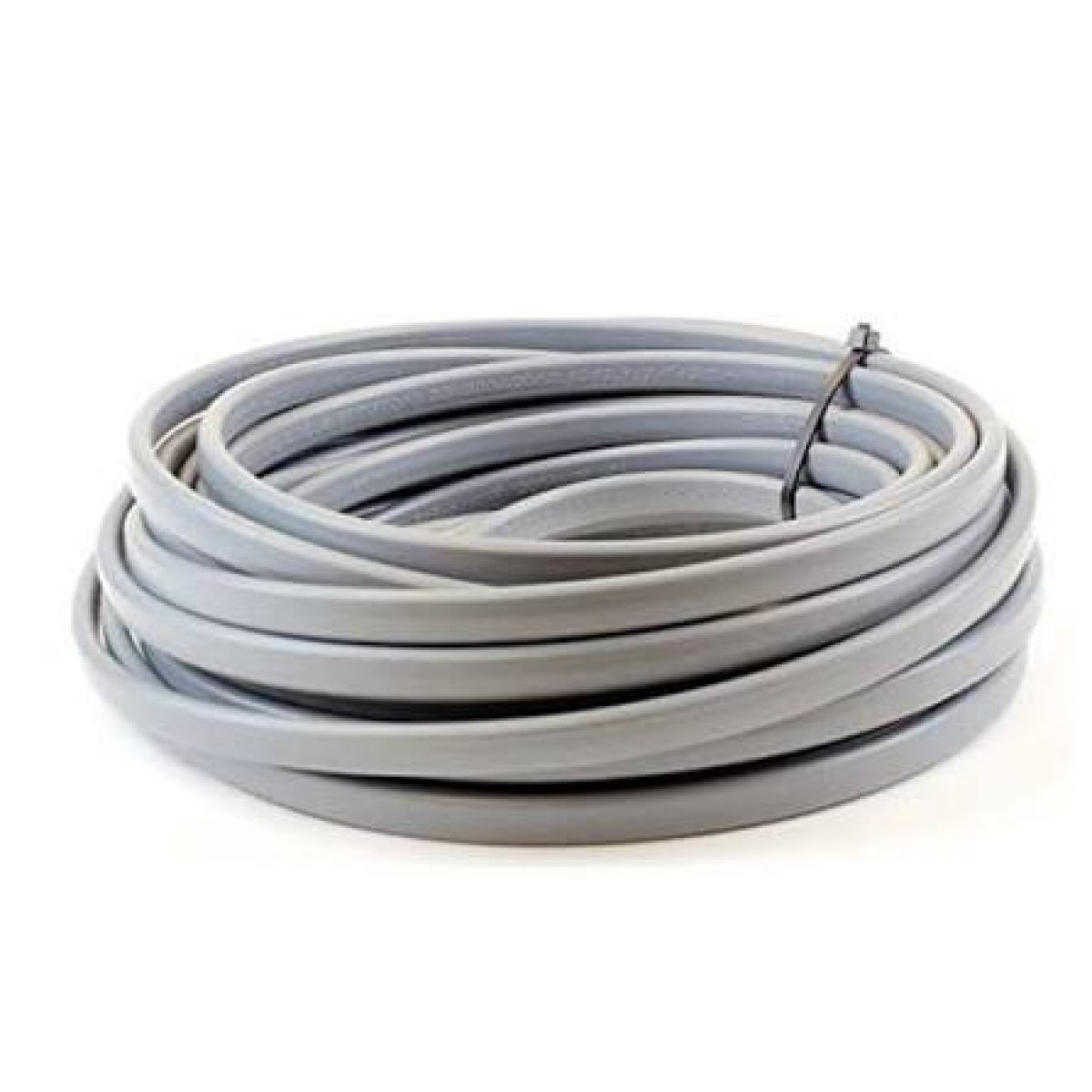

Flat profile for easy installation
Unlike bulky round power cords, the unique flat profile of T&E wiring allows it to sit flush against joists, under plaster, or tucked tightly inside modern PVC wall conduits. The outer protective sheath is molded from an advanced, flame-retardant PVC compound. This heavy-duty skin is tough enough to withstand physical pulling through tight structural spaces without tearing, yet soft enough for effortless stripping and wire termination at switch boxes or sockets.
Product features
- 99.9% Pure Copper Cores: Maximizes power transmission while eliminating localized hotspots and power drop-offs.
- Integrated Safety Earth: Central bare grounding wire offers robust, continuous shock protection across the entire circuit length.
- Flame-Retardant Sheath: Self-extinguishing outer insulation stops the propagation of fire during severe short circuits.
- Space-Saving Flat Geometry: Fits perfectly into shallow wall grooves or surface-mounted casing strips.
Technical specifications
- Cable Type: Flat Twin and Earth (T&E / Fixed Installation Cable)
- Conductor Material: 99.9% Pure Electrolytic Annealed Solid or Stranded Copper
- Insulation Material: Flame-Retardant (FR) PVC (Inner Cores & Outer Jacket)
- Core Identifiers: 2 Insulated Cores (Live & Neutral) + 1 Bare Earth Core
- Voltage Rating: 300V / 500V up to 450V / 750V AC
- Application: Perfect for residential ring mains, kitchen power circuits, fixed lighting networks, socket outlets, and power supply links to consumer distribution boards.
